Chainflex 3G-OTH-47733 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47733 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-07-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CEI 20-35.
Brand: Chainflex

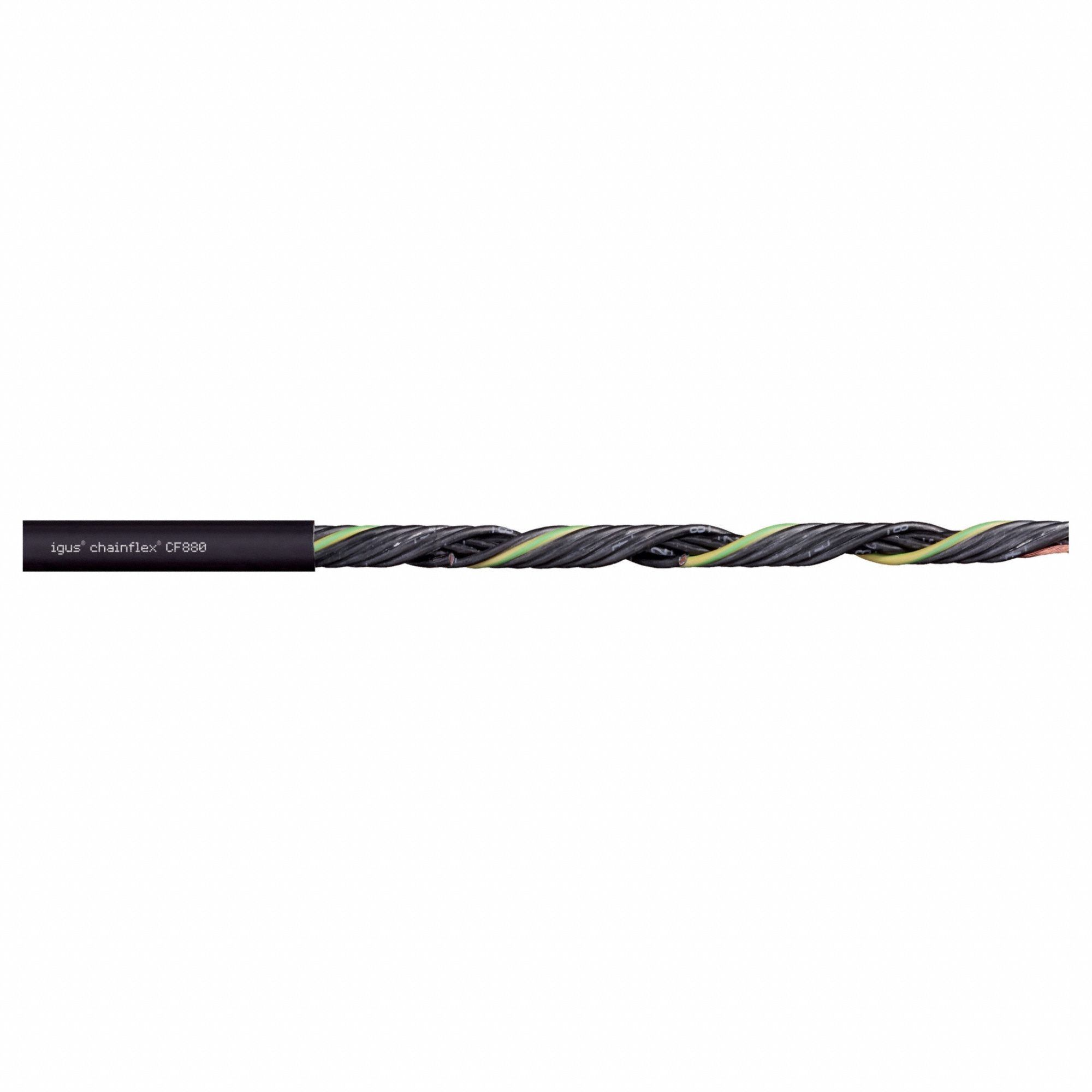

The CHAINFLEX Control Cable: 18 AWG (SKU 801JZ5) is a continuous flexing control cable from the Chainflex CF880 series. This 12-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, and includes a ground, rated at 300 V. It offers oil and grease resistance, complies with CEI 20-35 standards, and specifies minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	12
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF880-07-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
