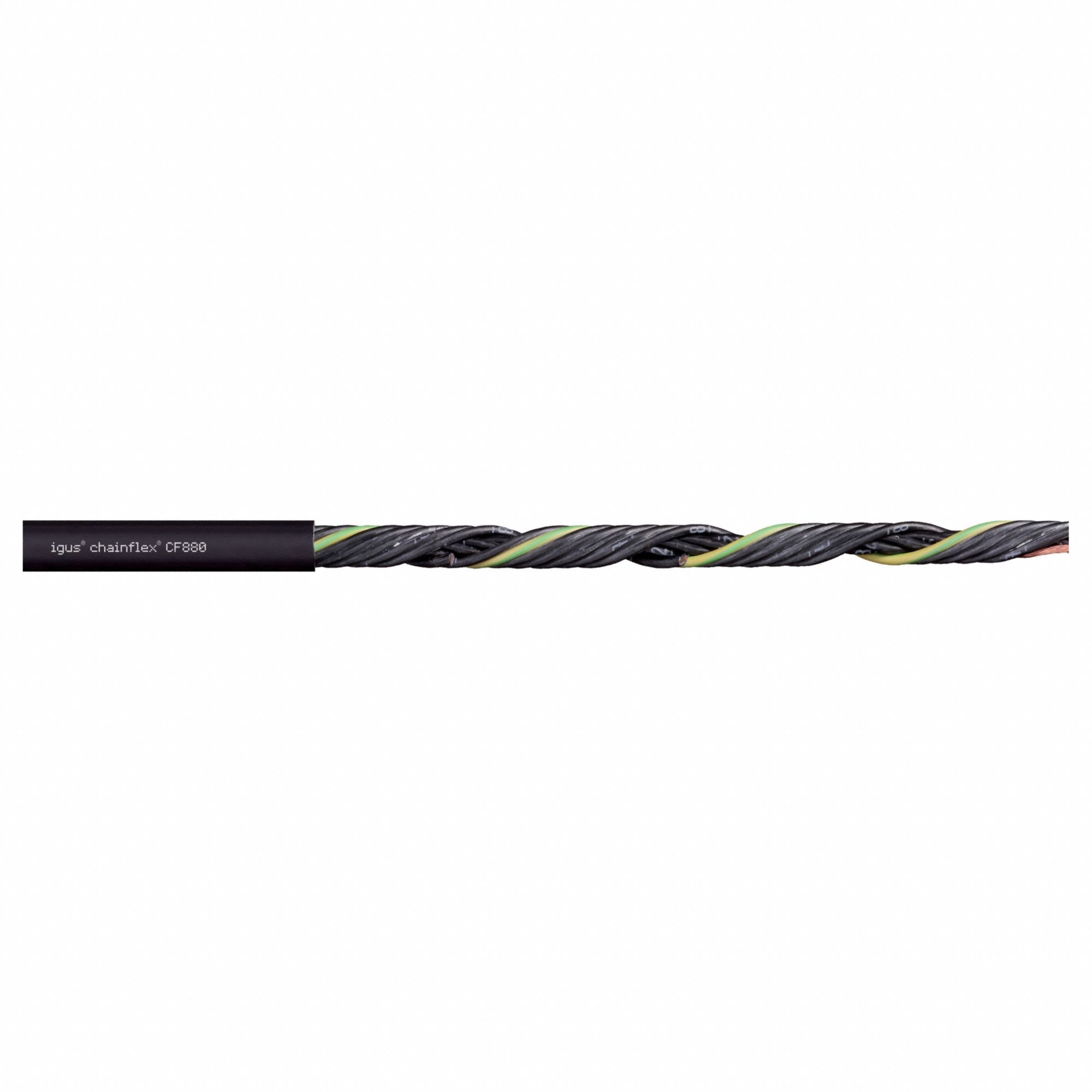

Chainflex 3G-OTH-53709 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53709 CHAINFLEX Control Cable: 18 AWG, 18 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-07-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex CF880 series, featuring 18 conductors of 18 AWG copper with a single conductor configuration and a PVC jacket rated for 300 V. It includes a ground conductor, meets FT-1 flame retardant standards, and is designed for fixed, flexible, and e-chain applications with minimum bend radius factors of 7 x OD, 10 x OD, and 12.5 x OD respectively.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	18
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF880-07-18
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
