Chainflex 3G-OTH-51595 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51595 CHAINFLEX Control Cable: 17 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-10-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: CEI 20-35.
Brand: Chainflex

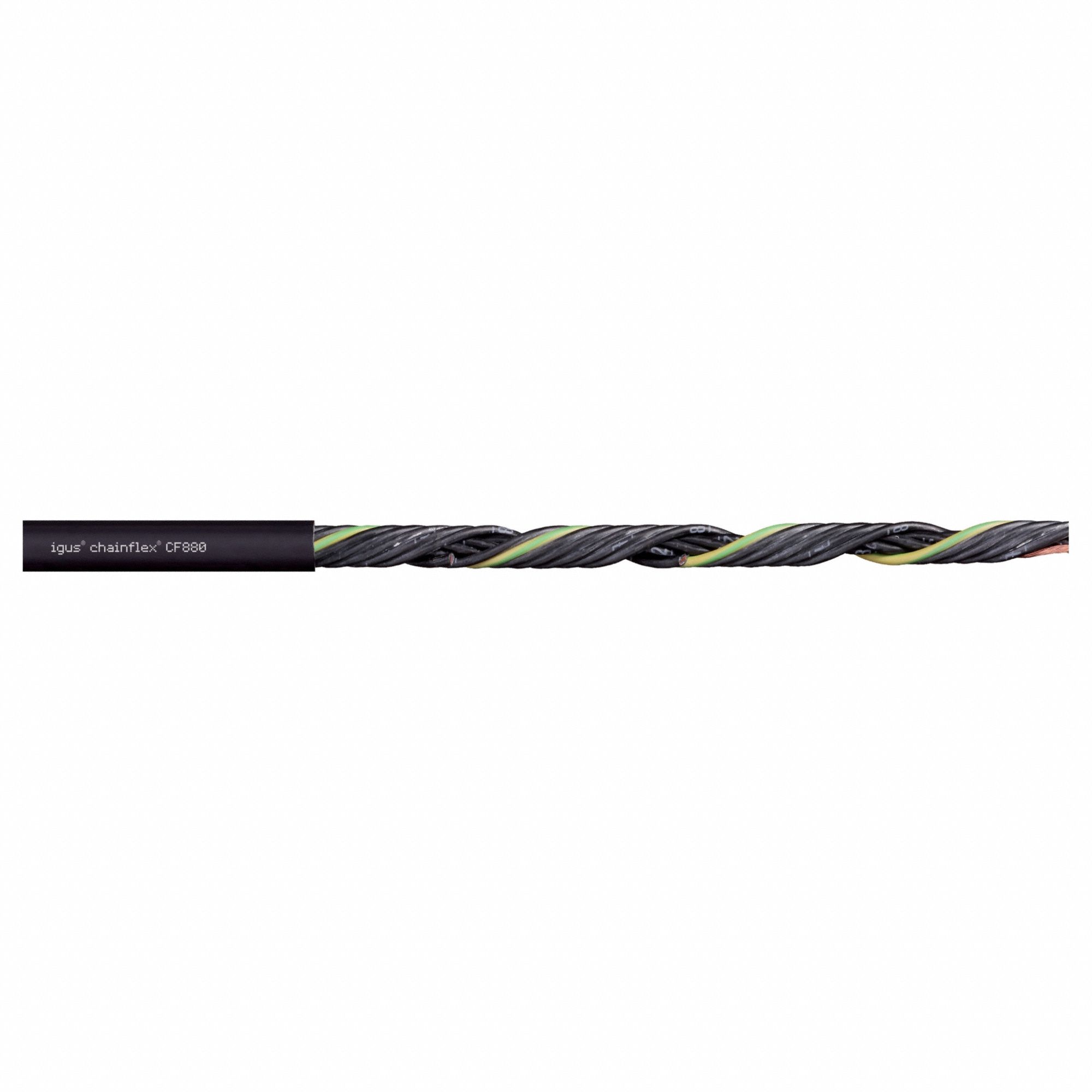

The CHAINFLEX Control Cable: 17 AWG (SKU 801K02, MPN CF880-10-04) is a continuous flexing control cable from the Chainflex series. It features 4 copper conductors with a single conductor configuration, includes a ground, and has a PVC jacket rated for 300 V. The cable is flame retardant per CEI 20-35 standards, with minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	4
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF880-10-04
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
