Chainflex 3G-OTH-50944 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50944 CHAINFLEX Control Cable: 16 AWG, 18 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-15-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

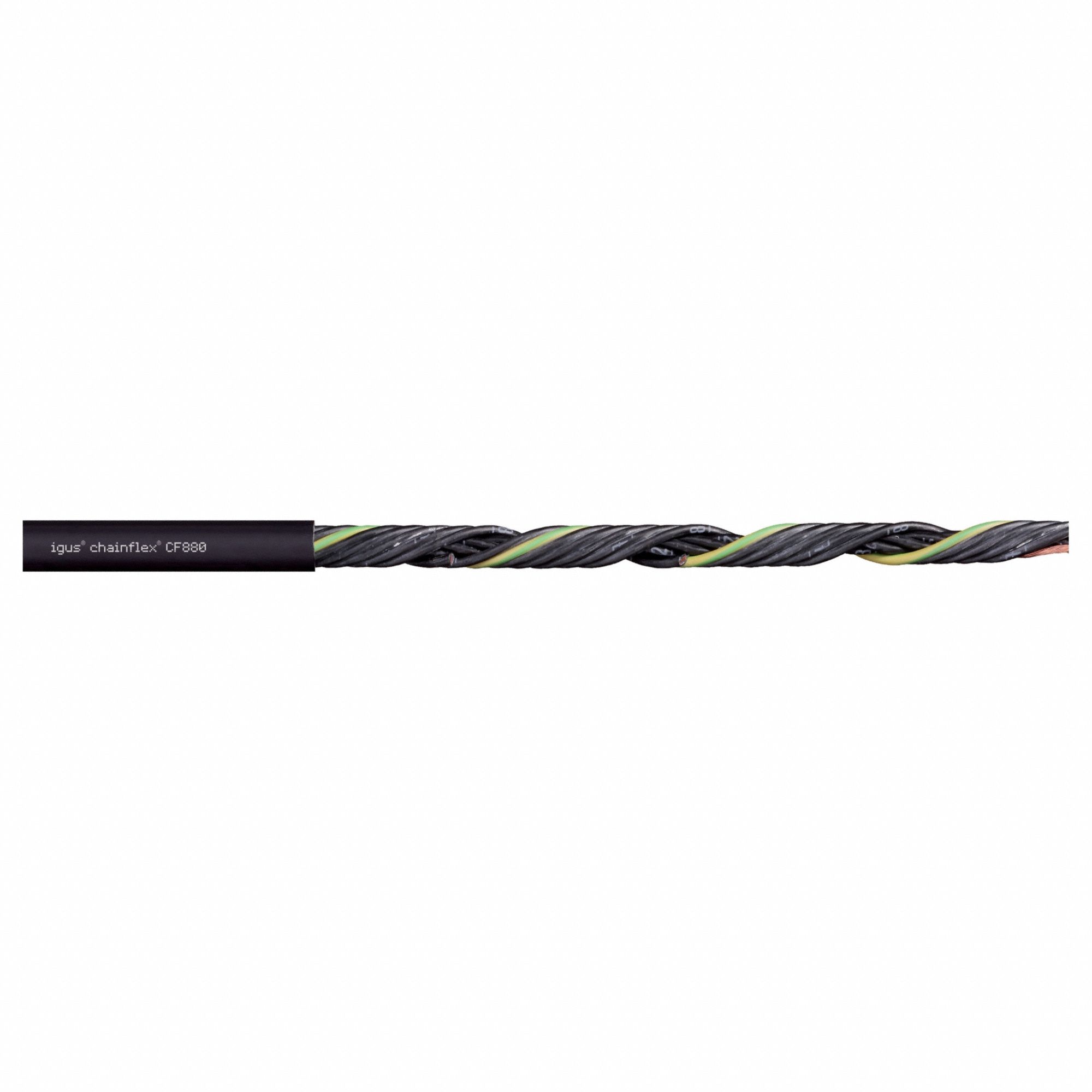

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex series, model CF880-15-18, featuring 18 conductors of 16 AWG copper wire with a single conductor configuration and an included ground. It is rated for 300 V, has a PVC jacket, and is flame retardant per VW-1 standards. The cable offers minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	18
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF880-15-18
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
