Chainflex 3G-OTH-50687 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50687 CHAINFLEX Control Cable: 20 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF881-05-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

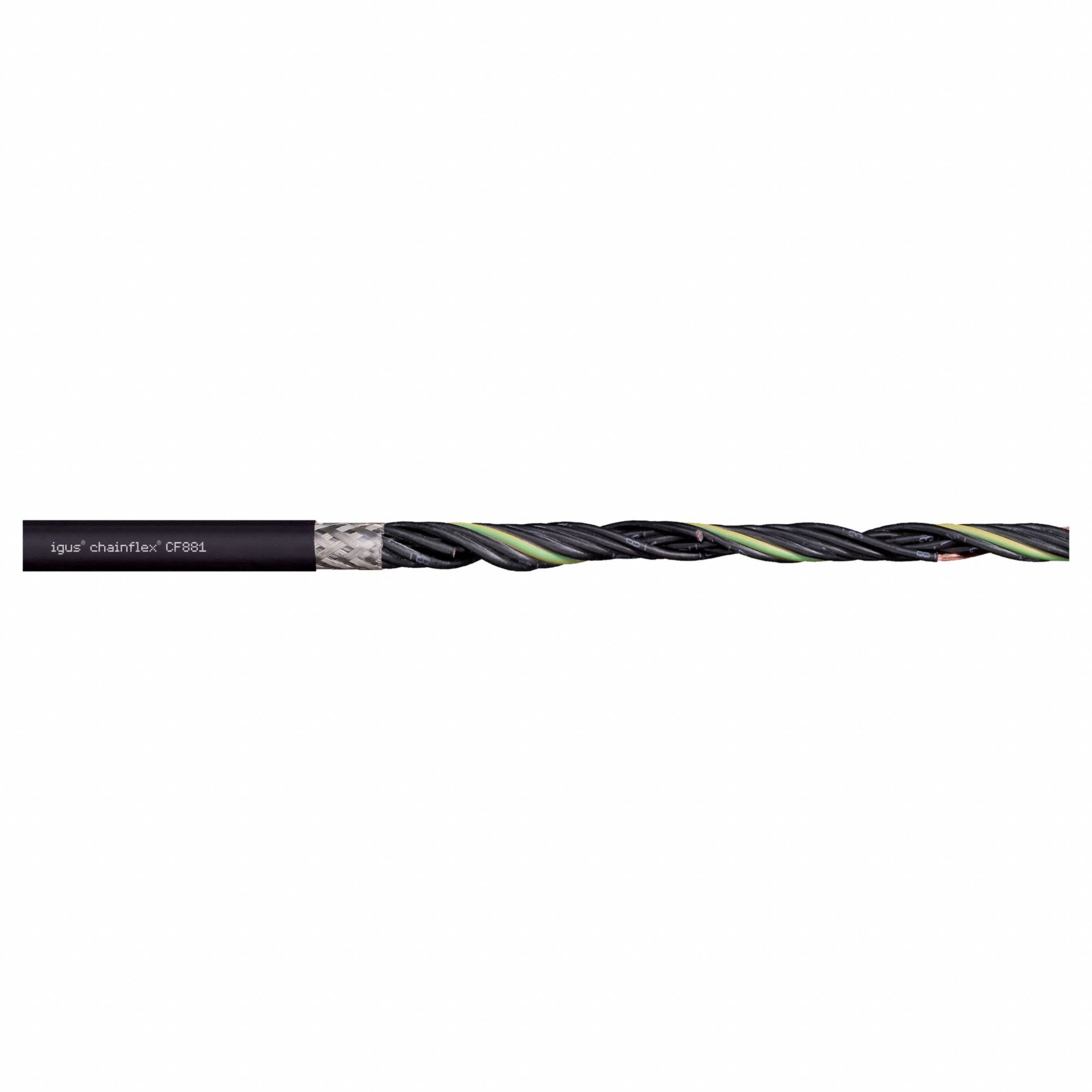

The CHAINFLEX Control Cable: 20 AWG (SKU 801K29) is a continuous flexing control cable from the Chainflex series, model CF881-05-12. It features 12 conductors of single copper wire with a PVC jacket, rated 300 V, and includes a ground conductor. The cable is oil and grease resistant, meets FT-1 standards, and has minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	12
Cable Series	CF881
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF881-05-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
