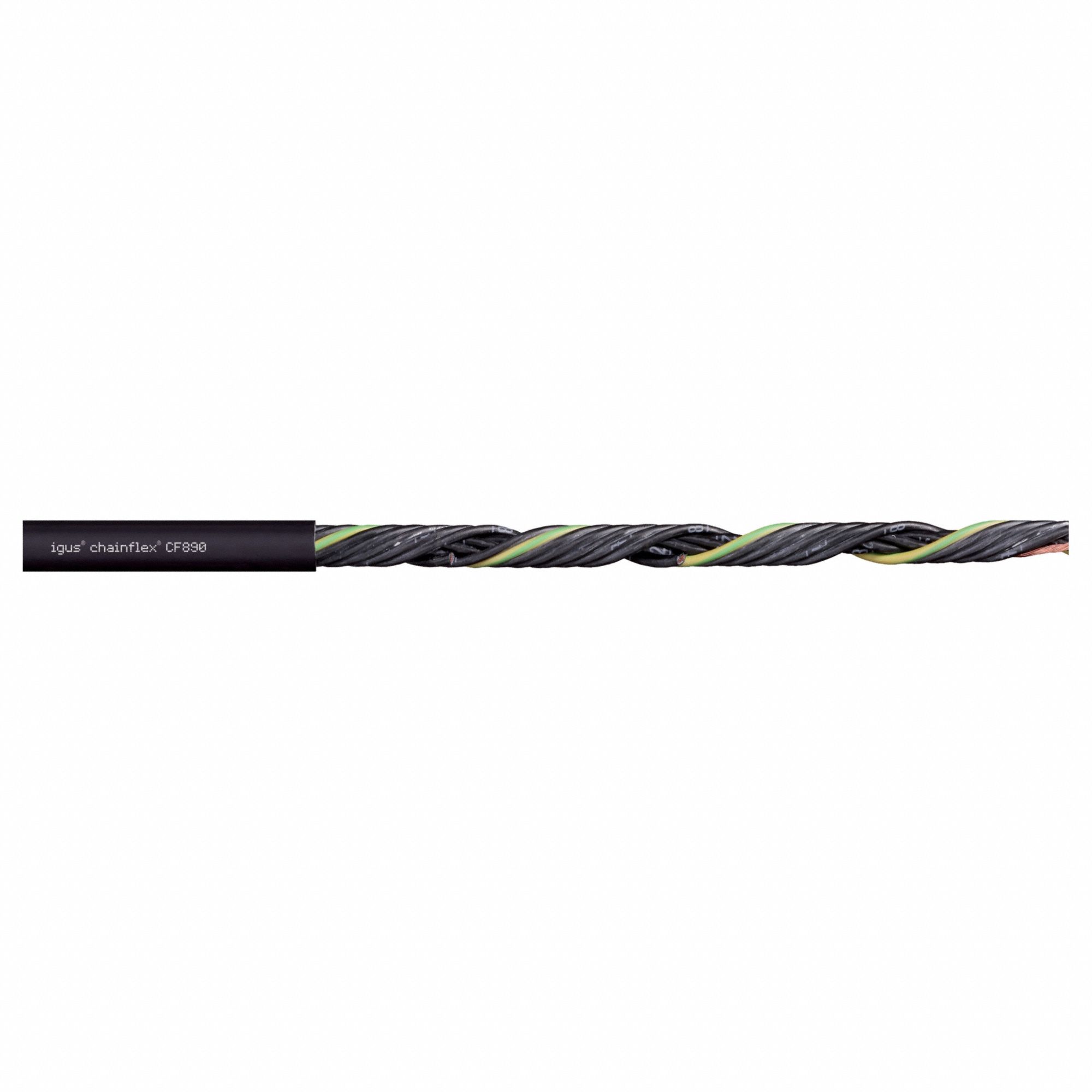

Chainflex 3G-OTH-54157 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54157 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF890-10-12, featuring 12 conductors of single copper wire with a PUR jacket rated at 600 V. It includes a ground conductor and is UV/sunlight resistant, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications. This cable complies with 2011/65/EU (RoHS Compliant-II) standards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Conductors	12
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF890-10-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
