Chainflex 3G-OTH-52290 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52290 CHAINFLEX Control Cable: 20 AWG, 1 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-05-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: IEC 60332-1-2.
Brand: Chainflex

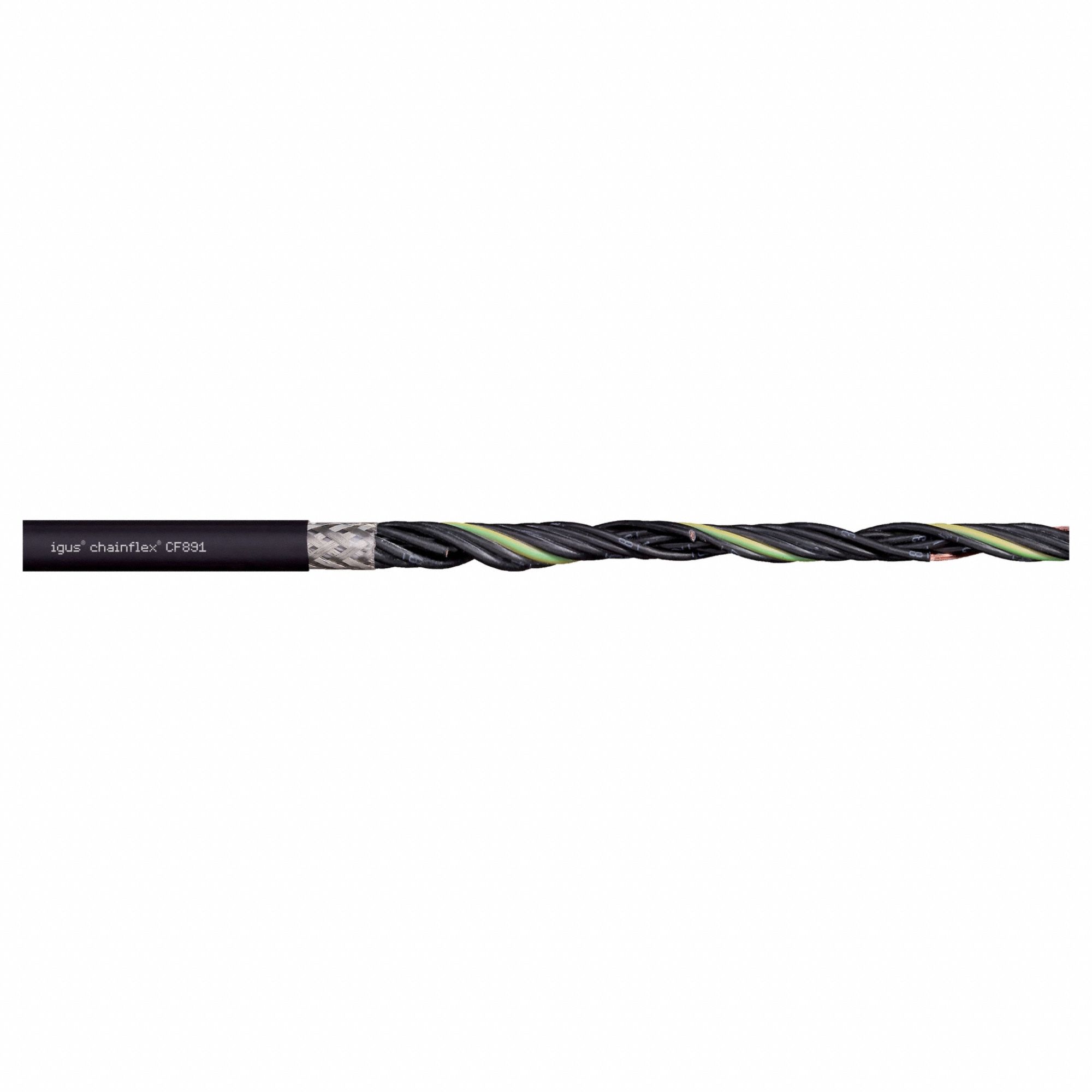

The CHAINFLEX Control Cable: 20 AWG (SKU 801KA6, MPN CF891-05-02) is a continuous flexing control cable from the Chainflex series. It features a single copper conductor, a PUR jacket, and a 600 V rating, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications. This flame-retardant cable complies with IEC 60332-1-2 and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	1
Cable Series	CF891
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF891-05-02
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
