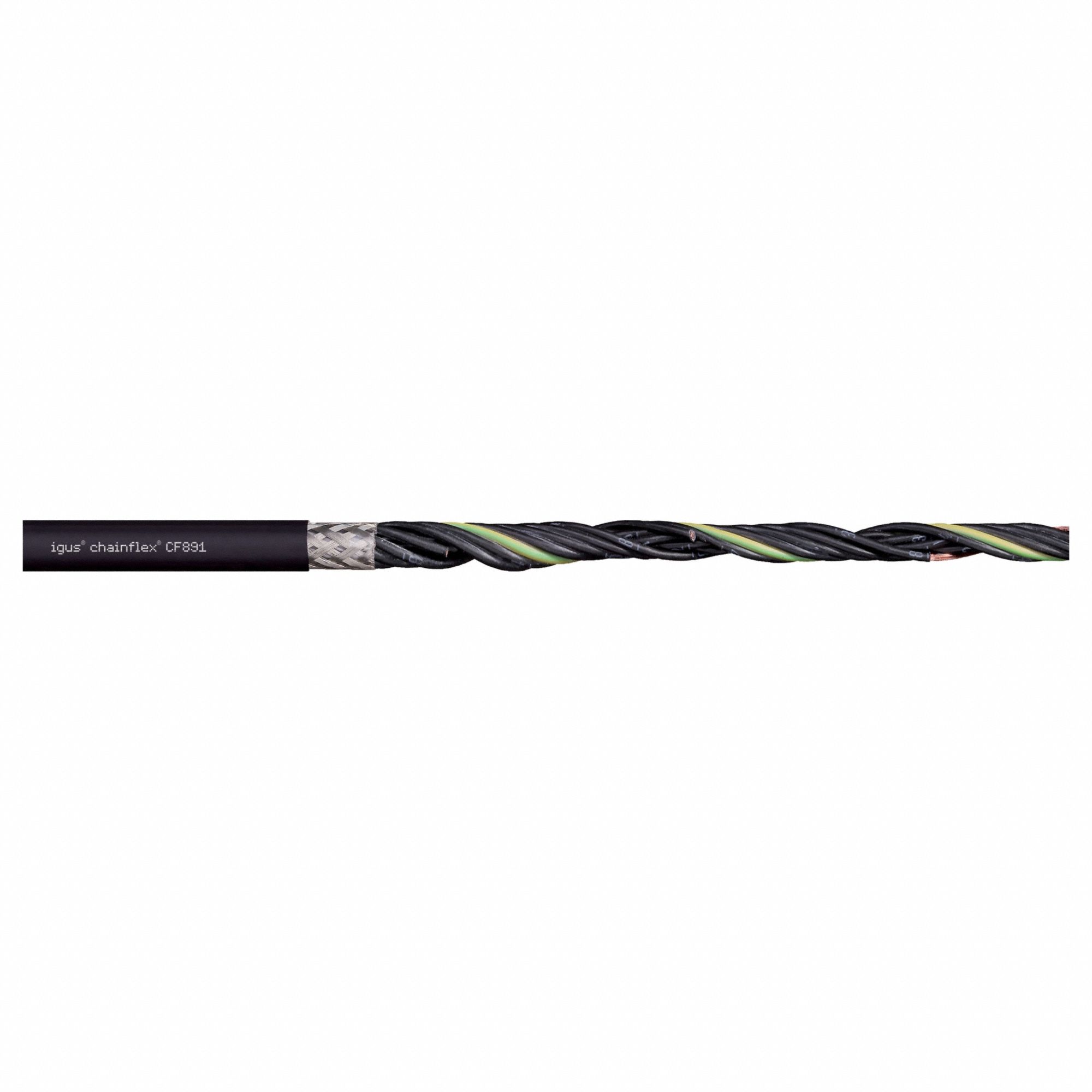

Chainflex 3G-OTH-54133 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54133 CHAINFLEX Control Cable: 20 AWG, 18 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-05-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CTP C-DE.PB49.B.00449.
Brand: Chainflex

The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the Chainflex series, model CF891-05-18, featuring 18 conductors of 20 AWG copper with a single conductor configuration and a PUR jacket rated at 600 V. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications, complying with standard CTP C-DE.PB49.B.00449.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CTP C-DE.PB49.B.00449
Conductors	18
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF891-05-18
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
