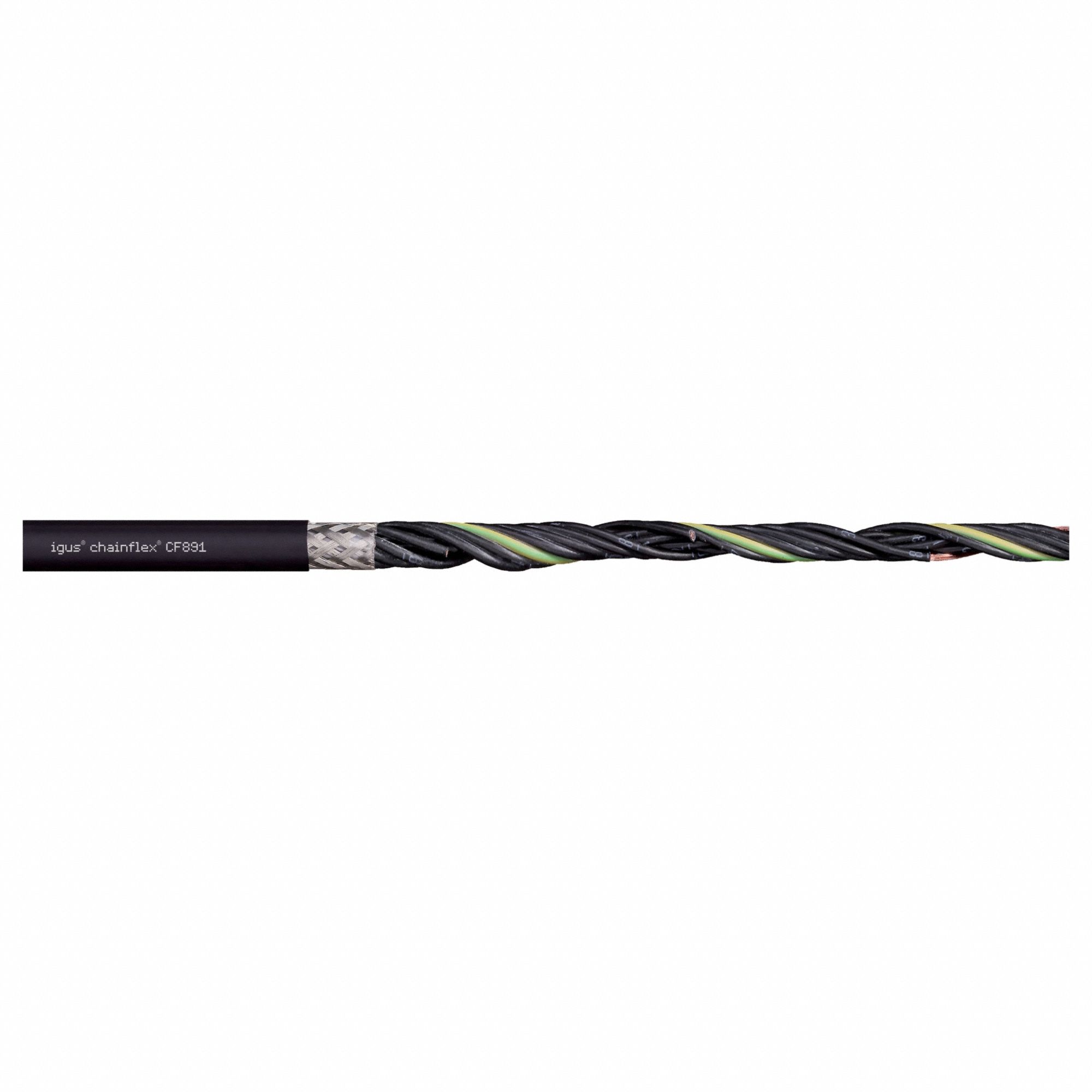

Chainflex 3G-OTH-54140 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54140 CHAINFLEX Control Cable: 18 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-07-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG (SKU 801KC6, MPN CF891-07-07) is a continuous flexing control cable from the Chainflex series. It features 7 conductors of 18 AWG single copper wire with a PUR jacket, rated at 600 V, and includes a ground conductor. The cable is oil and grease resistant, complies with IEC 60332-1-2, and has minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	7
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF891-07-07
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
