Chainflex 3G-OTH-54147 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54147 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-07-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CEI 20-35.
Brand: Chainflex

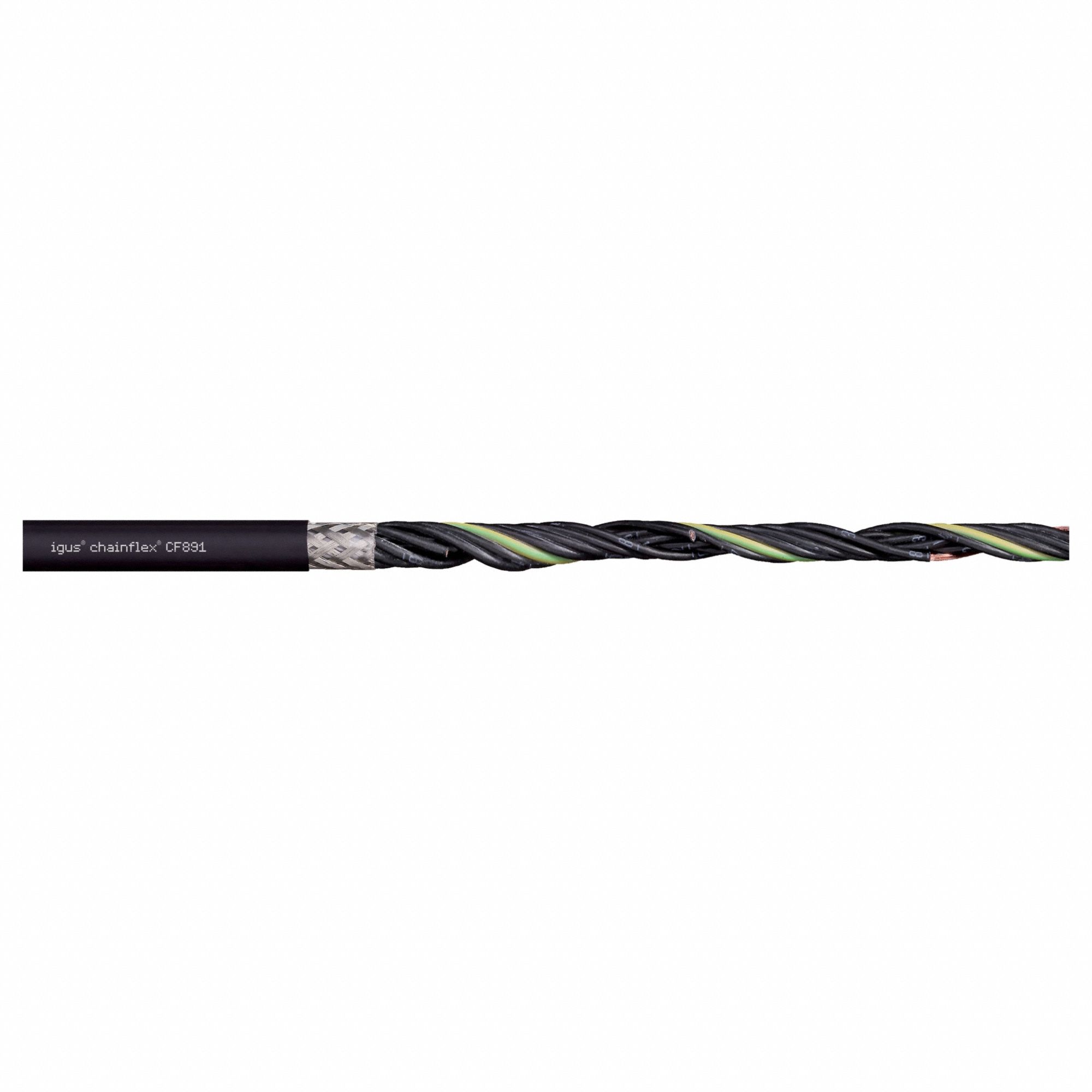

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the CF891 series, featuring 12 conductors of single copper wire with a PUR jacket rated at 600 V. It includes a ground conductor and is UV/sunlight resistant, meeting CEI 20-35 standards. The cable offers minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	12
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF891-07-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
