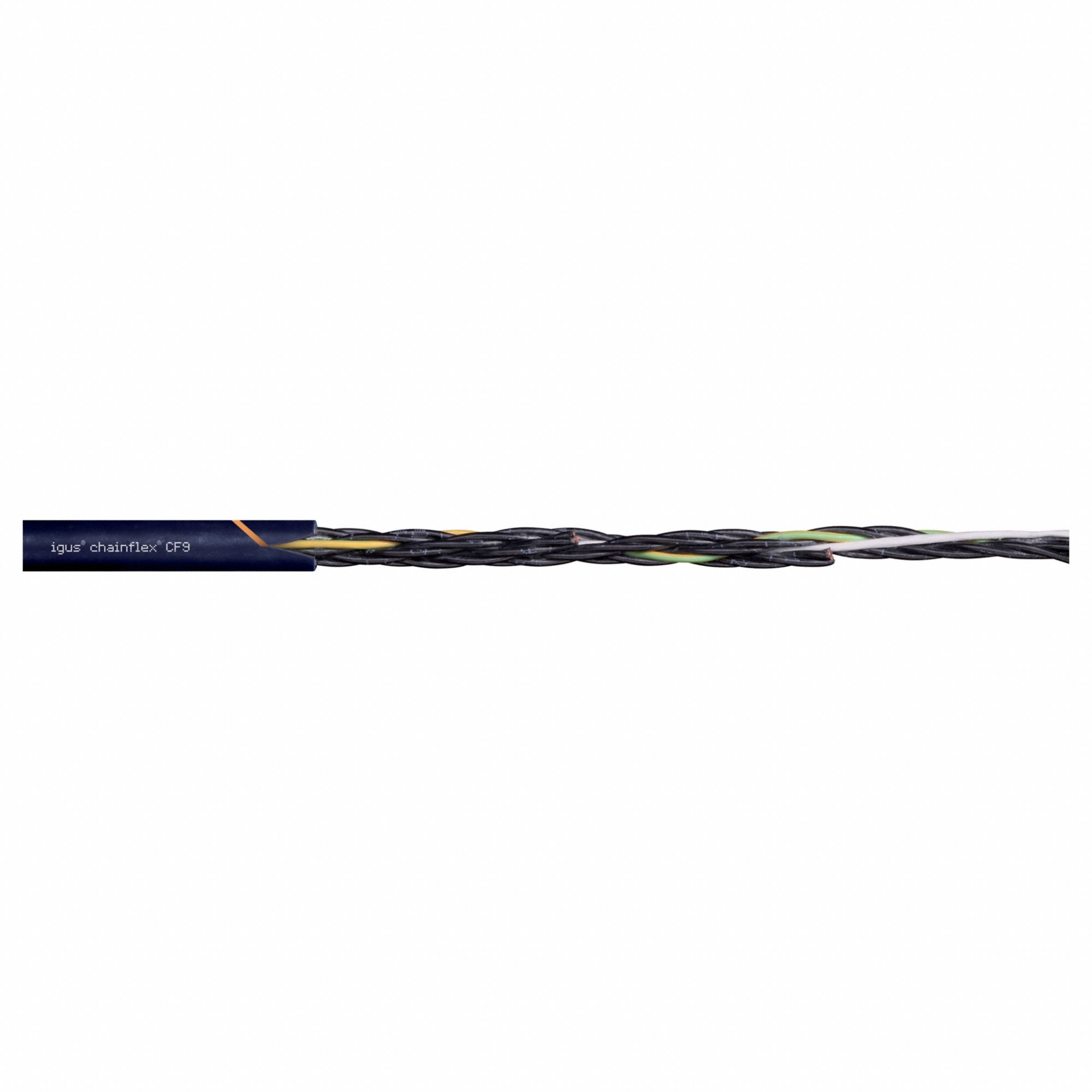

Chainflex 3G-OTH-53725 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53725 CHAINFLEX Control Cable: 24 AWG, 6 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-06). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: CEI 20-35.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG (SKU 801KF5, MPN CF9-02-06) is a continuous flexing control cable from the Chainflex CF9 series. It features 6 conductors of single copper wire, a TPR jacket, 300 V rating, and is coolant resistant. The cable meets CEI 20-35 standards and has minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Conductors	6
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-02-06
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
