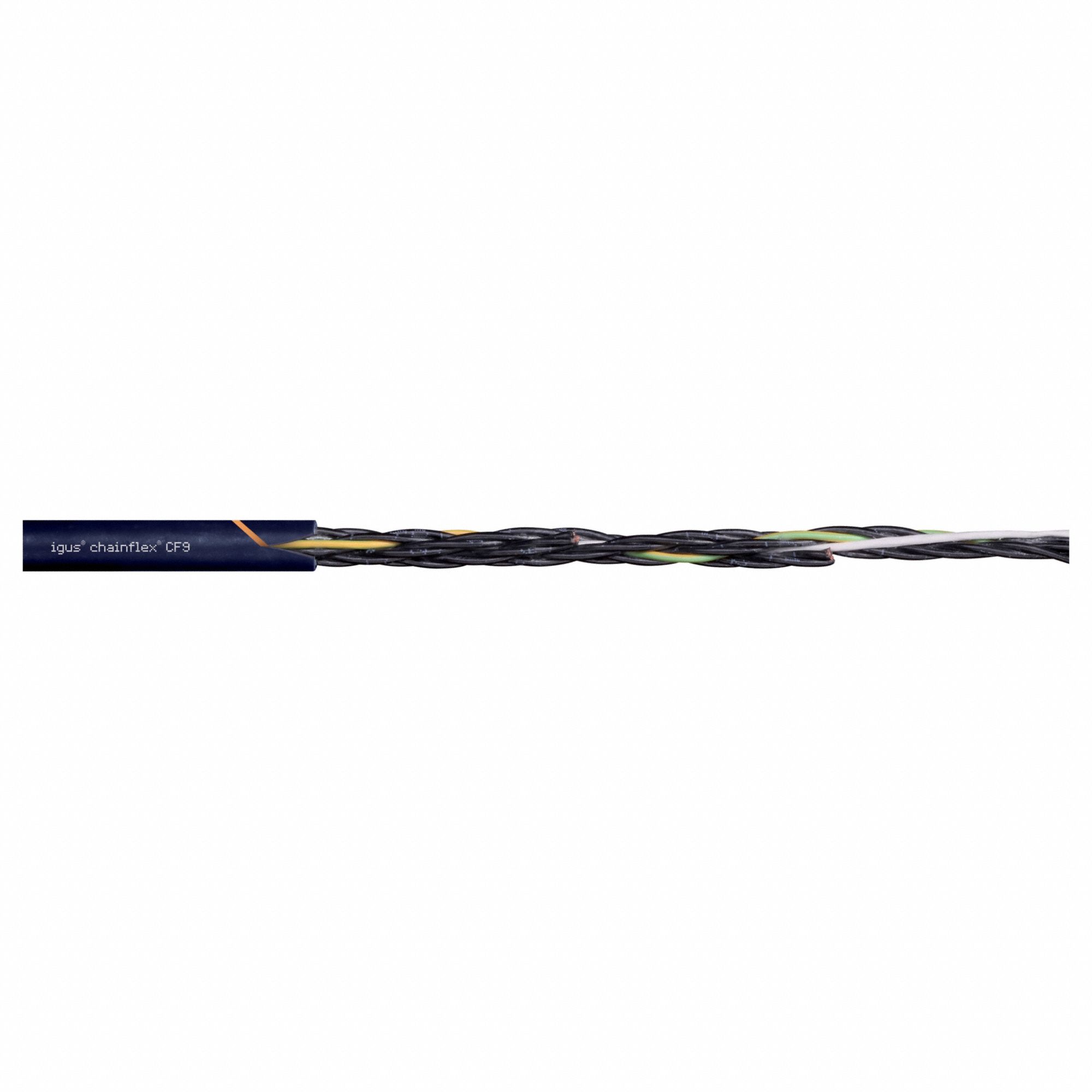

Chainflex 3G-OTH-53732 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53732 CHAINFLEX Control Cable: 24 AWG, 7 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG (SKU 801KF6) is a continuous flexing control cable from the Chainflex CF9 series, featuring 7 conductors of single-strand copper with a TPR jacket rated at 300 V. It is oil and grease resistant, meets CF9.15.07 ISO Class 1 outer jacket material standards, and has minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications. This cable does not include a ground conductor.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Conductors	7
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-02-07
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
