Chainflex 3G-OTH-52063 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52063 CHAINFLEX Control Cable: 22 AWG, 6 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-03-06). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: FT-1.
Brand: Chainflex

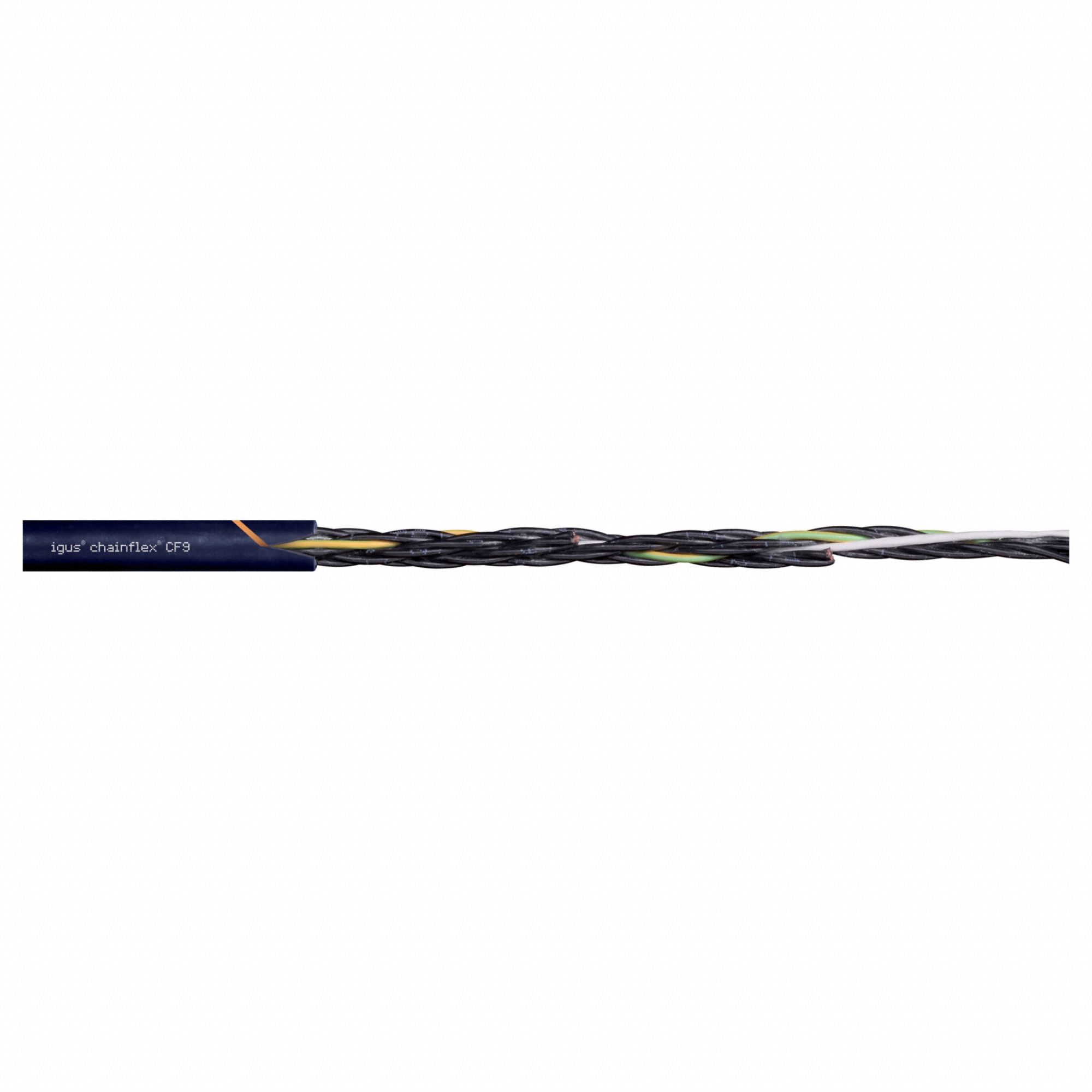

The CHAINFLEX Control Cable: 22 AWG (SKU 801KG1, MPN CF9-03-06) is a continuous flexing control cable from the Chainflex CF9 series. It features 6 conductors of single copper wire, a TPR jacket, and is rated 300 V with FT-1 standards. This UV/sunlight-resistant cable offers minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications, and does not include a ground.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	6
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-03-06
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
