Chainflex 3G-OTH-52556 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52556 CHAINFLEX Control Cable: 20 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-05-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

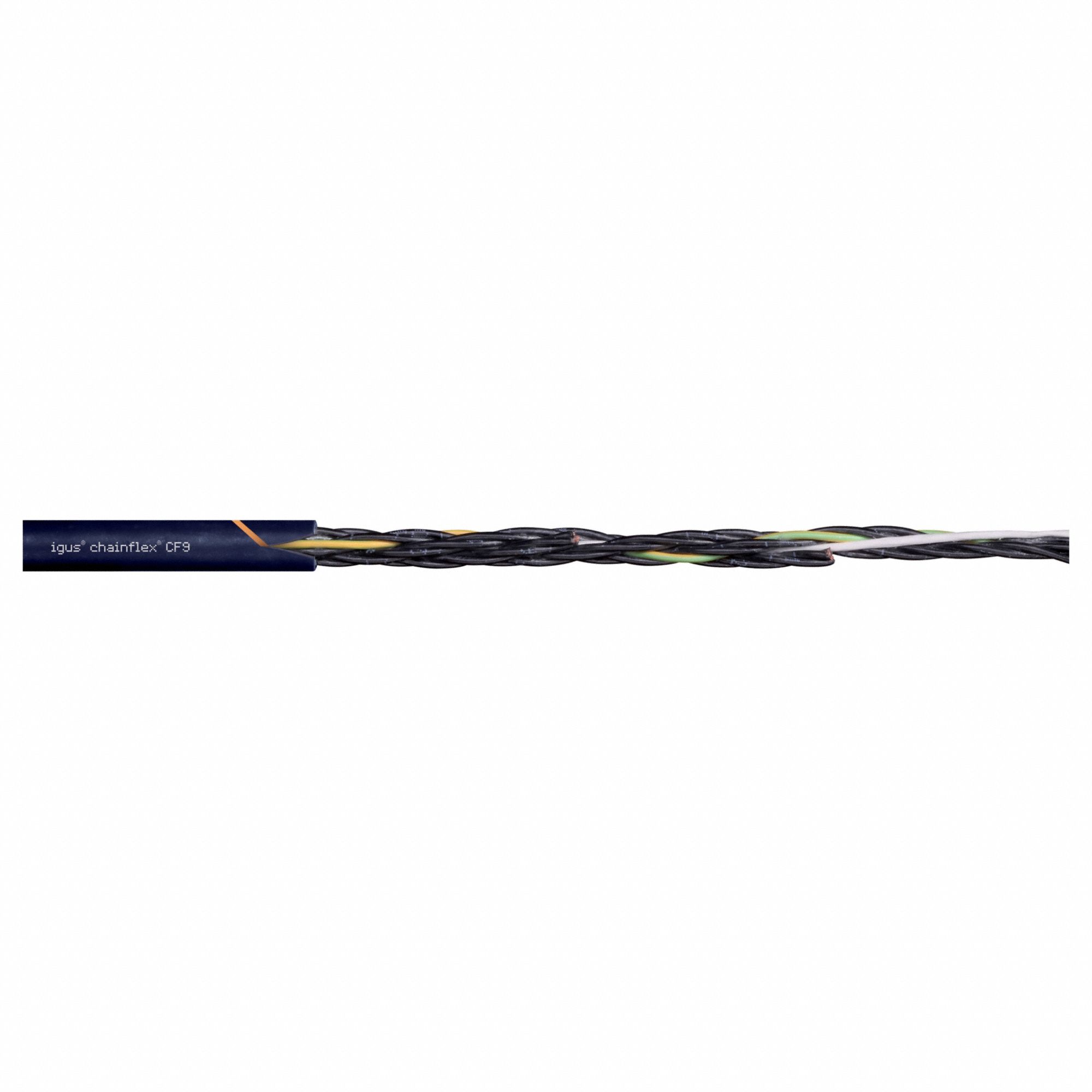

The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 18 conductors of single copper wire with a TPR jacket rated at 300 V. It is coolant resistant and CE 2014/35/EU compliant, with minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications. This cable does not include a ground conductor and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	18
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-05-18
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
