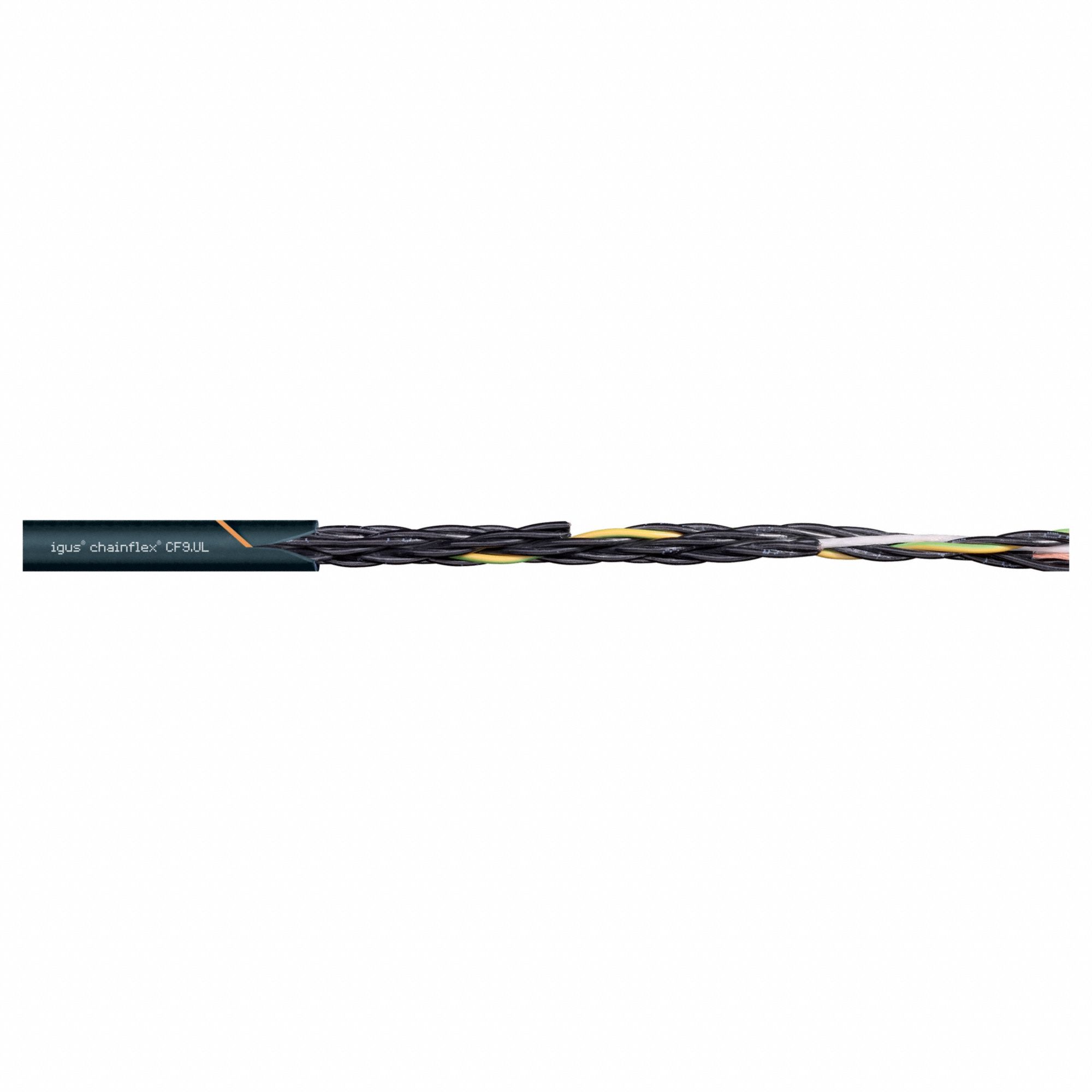

Chainflex 3G-OTH-50725 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50725 CHAINFLEX Control Cable: 24 AWG, 3 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-UL-0203INI). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF9-UL series, featuring 3 conductors of single copper wire with a TPR jacket rated at 300 V. It is flame retardant per VW-1 standards and does not include a ground conductor. Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	3
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-0203INI
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
