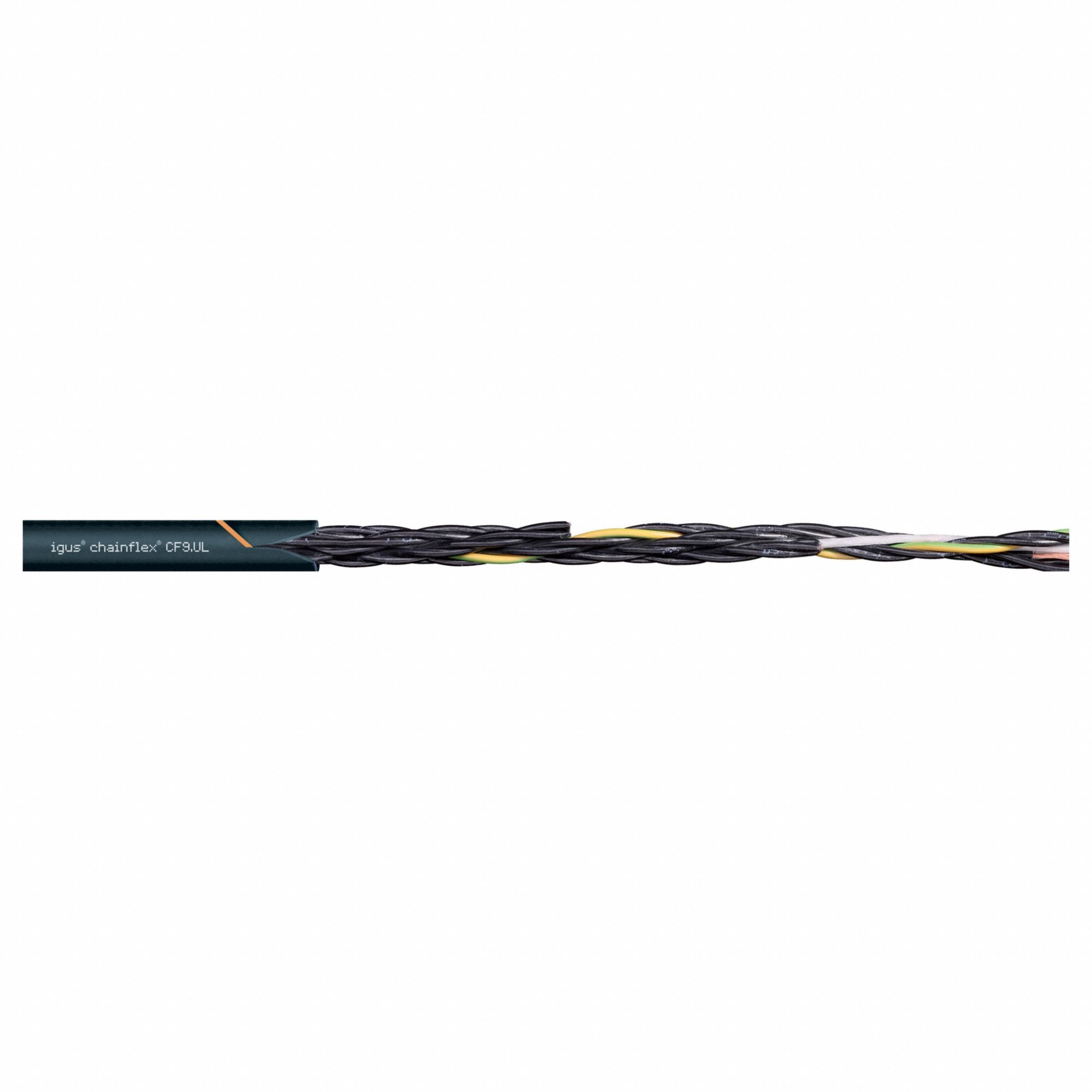

Chainflex 3G-OTH-45714 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45714 CHAINFLEX Control Cable: 24 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-UL-02-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: VDMA 24568 with Plantocut 8 S-MB by DEA.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex series, model CF9-UL-02-12, featuring 12 conductors of single copper wire with a TPR jacket rated at 300 V. It is oil and grease resistant, complies with VDMA 24568 using Plantocut 8 S-MB by DEA, and has minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications. This cable does not include a ground conductor.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VDMA 24568 with Plantocut 8 S-MB by DEA
Conductors	12
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-02-12
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
