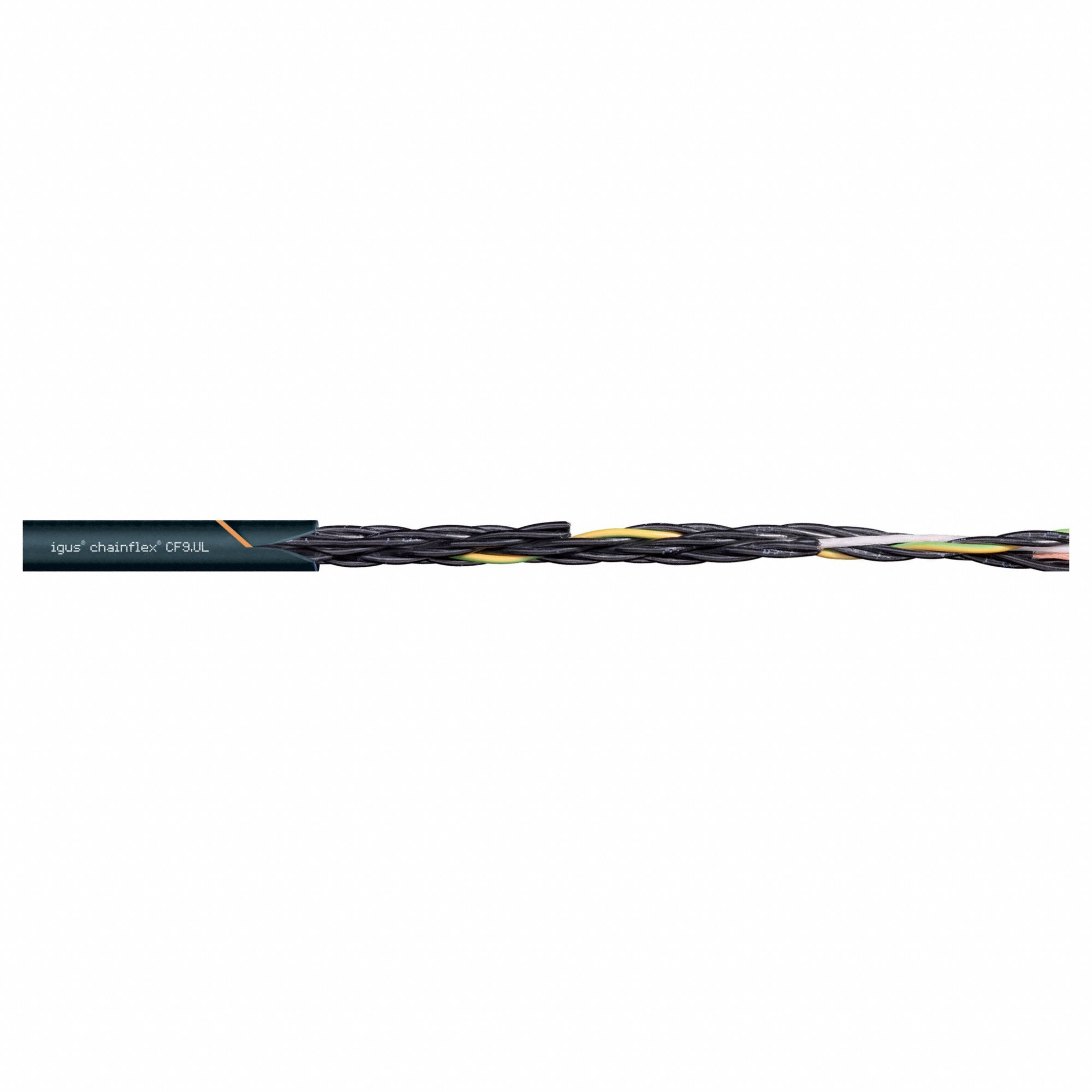

Chainflex 3G-OTH-51381 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51381 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Antimicrobial; Standards: IEC 60332-1-2.
Brand: Chainflex

The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the Chainflex series, model CF9-UL-05-05, featuring 5 copper conductors with a TPR jacket rated at 1,000 V. It complies with IEC 60332-1-2 standards and offers antimicrobial resistance, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	5
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-05-05
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
