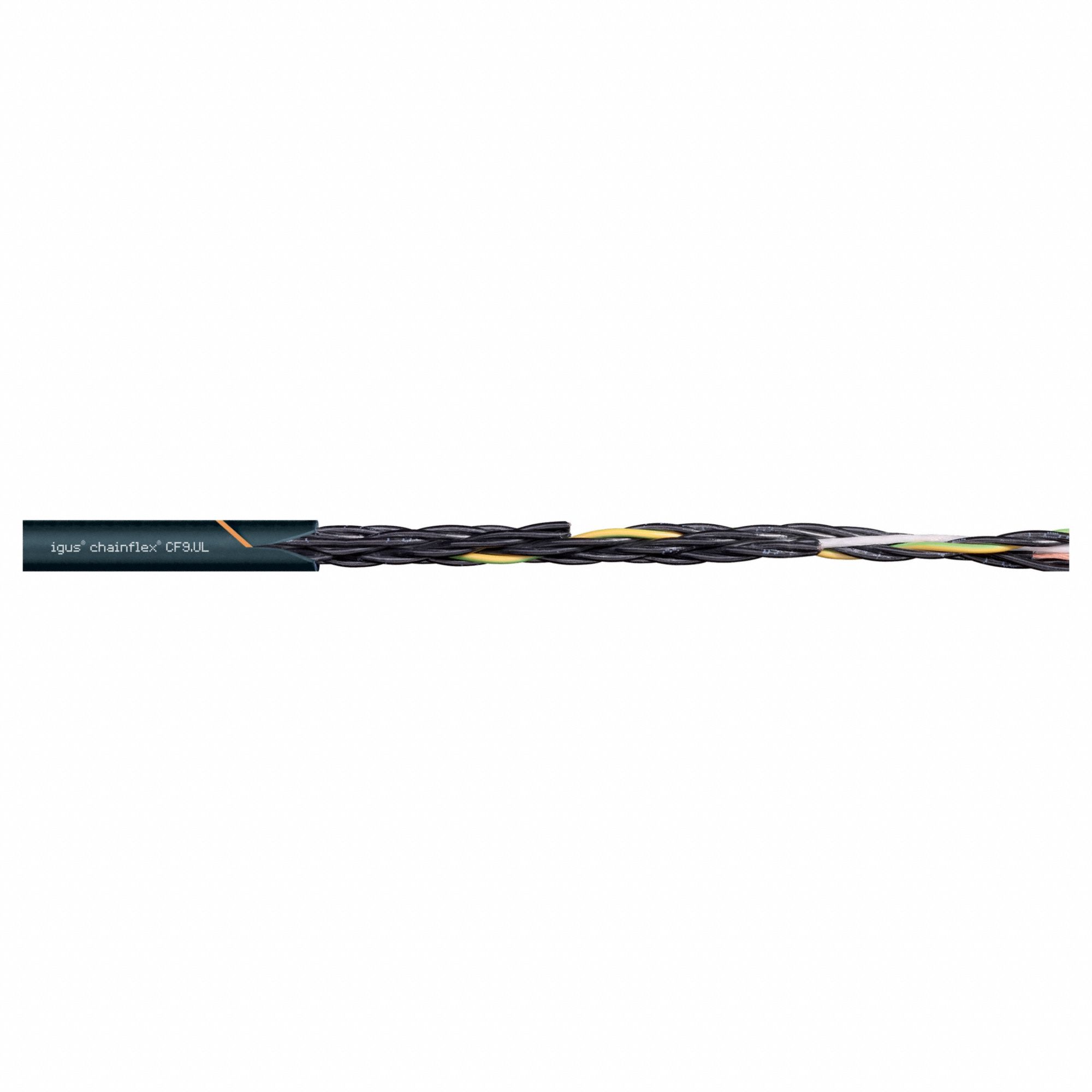

Chainflex 3G-OTH-53762 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53762 CHAINFLEX Control Cable: 16 AWG, 7 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-15-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: FT-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex CF9-UL series, featuring 7 conductors of single copper wire with a TPR jacket rated at 1,000 V. It includes a ground conductor, meets FT-1 standards, and is UV/sunlight resistant. Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	7
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-15-07
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
