Chainflex 3G-OTH-49478 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49478 CHAINFLEX Measuring System Cable: Green, TPR Jacket, 50 V Volt (MPN CF11-025-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/Shielded Twisted Pair 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

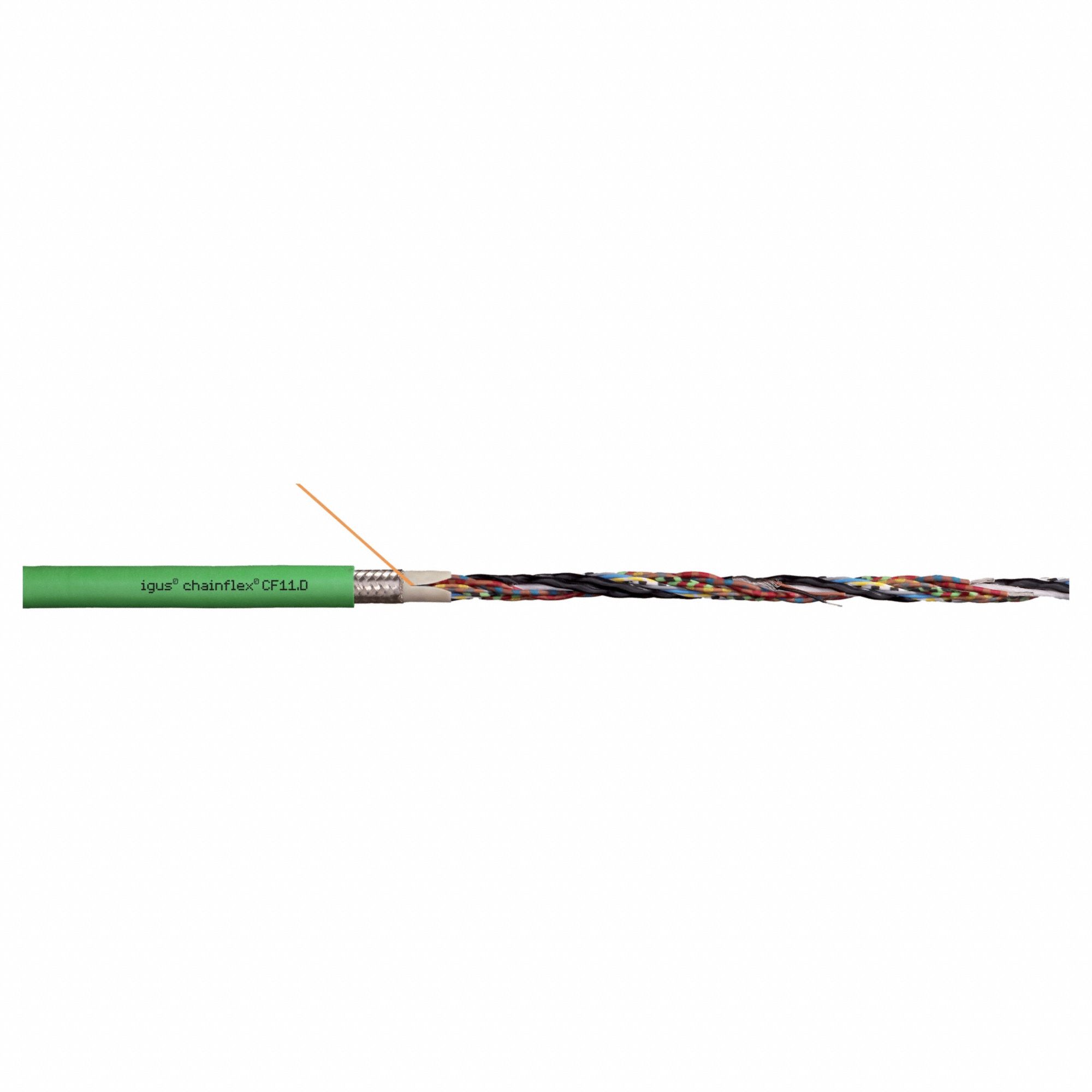

The CHAINFLEX Measuring System Cable (MPN CF11-025-D) is a servo motor feedback cable with a green TPR jacket rated for 50 V. It features a conductor grouping of (3) shielded twisted pair 26 AWG and a shielded twisted pair 20 AWG, with no included ground. The cable is ordered by the foot and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/Shielded Twisted Pair 20 AWG
Manufacturer Part Number	CF11-025-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
