Chainflex 3G-OTH-47536 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47536 CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 26 AWG (0.14)/(2) SC 20 AWG (0.50), Green (MPN CF111-002-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(2) SC 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

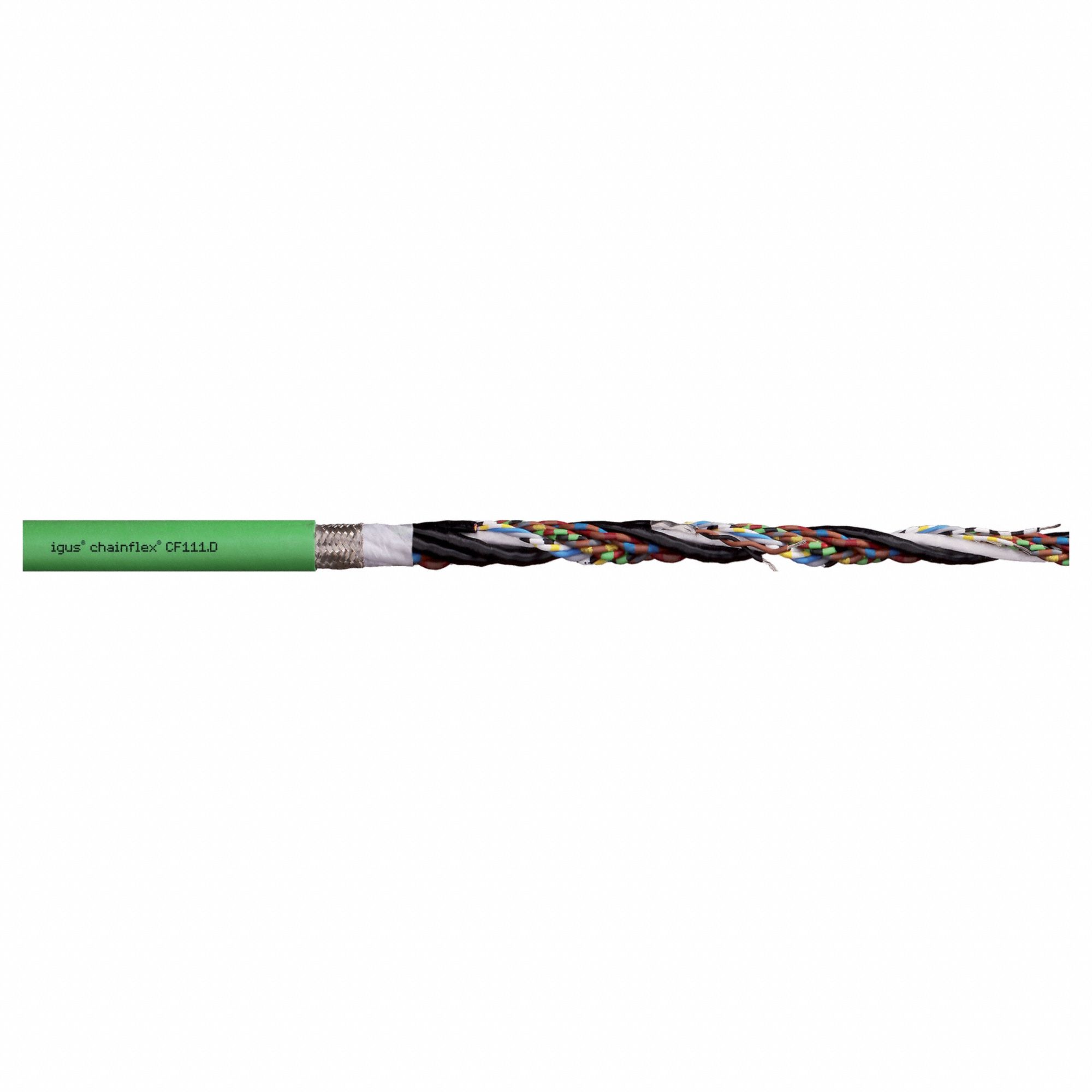

The CHAINFLEX Measuring System Cable (SKU 801KZ1, MPN CF111-002-D) is a servo motor feedback cable featuring (3) shielded twisted pair 26 AWG and (2) SC 20 AWG conductors, with no included ground. It is ordered by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	(0.14)/(2) SC 20 AWG (0.50), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(2) SC 20 AWG
Manufacturer Part Number	CF111-002-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
