Chainflex 3G-OTH-47809 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47809 CHAINFLEX Measuring System Cable: (4) Pr 26 AWG (0.14)/(4) 26 AWG (0.14)/(4) Shielded 20 AWG (0.50) (MPN CF111-004-D). Key specifications — Conductor Grouping: (4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

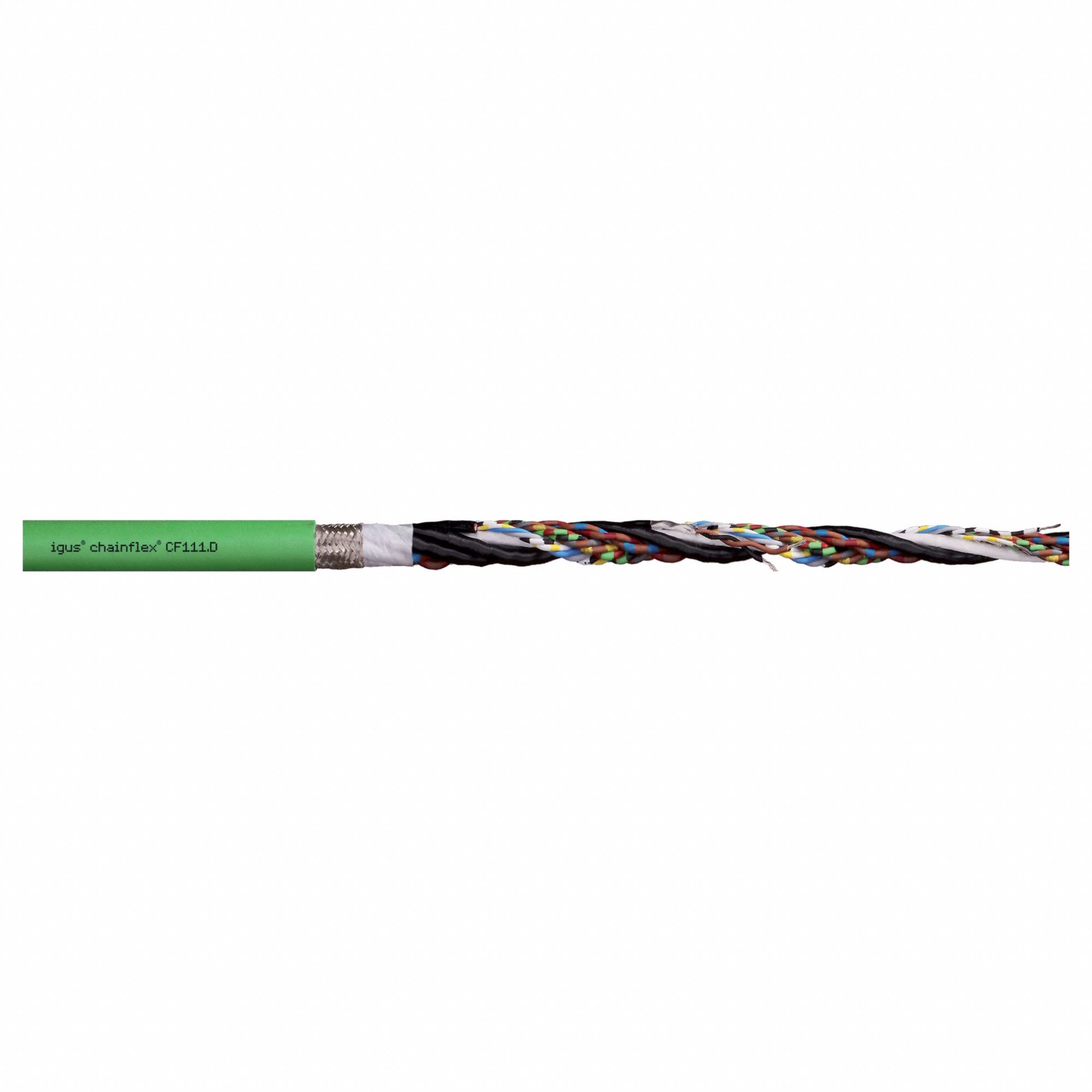

The CHAINFLEX Measuring System Cable (MPN CF111-004-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG. It is ordered by the foot, does not include a ground, and has a minimum bend radius factor of 5 x OD for fixed applications and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	AWG (0.14)/(4) Shielded 20 AWG (0.50)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG
Manufacturer Part Number	CF111-004-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
