Chainflex 3G-OTH-47506 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47506 CHAINFLEX Measuring System Cable: (3) Pr 26 AWG (0.14)/(2) Four Pr 26 AWG (0.14)/(2) 20 AWG (0.5) (MPN CF111-020-D). Key specifications — Conductor Grouping: (3) Pair 26 AWG/(2) Four Pair 26 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

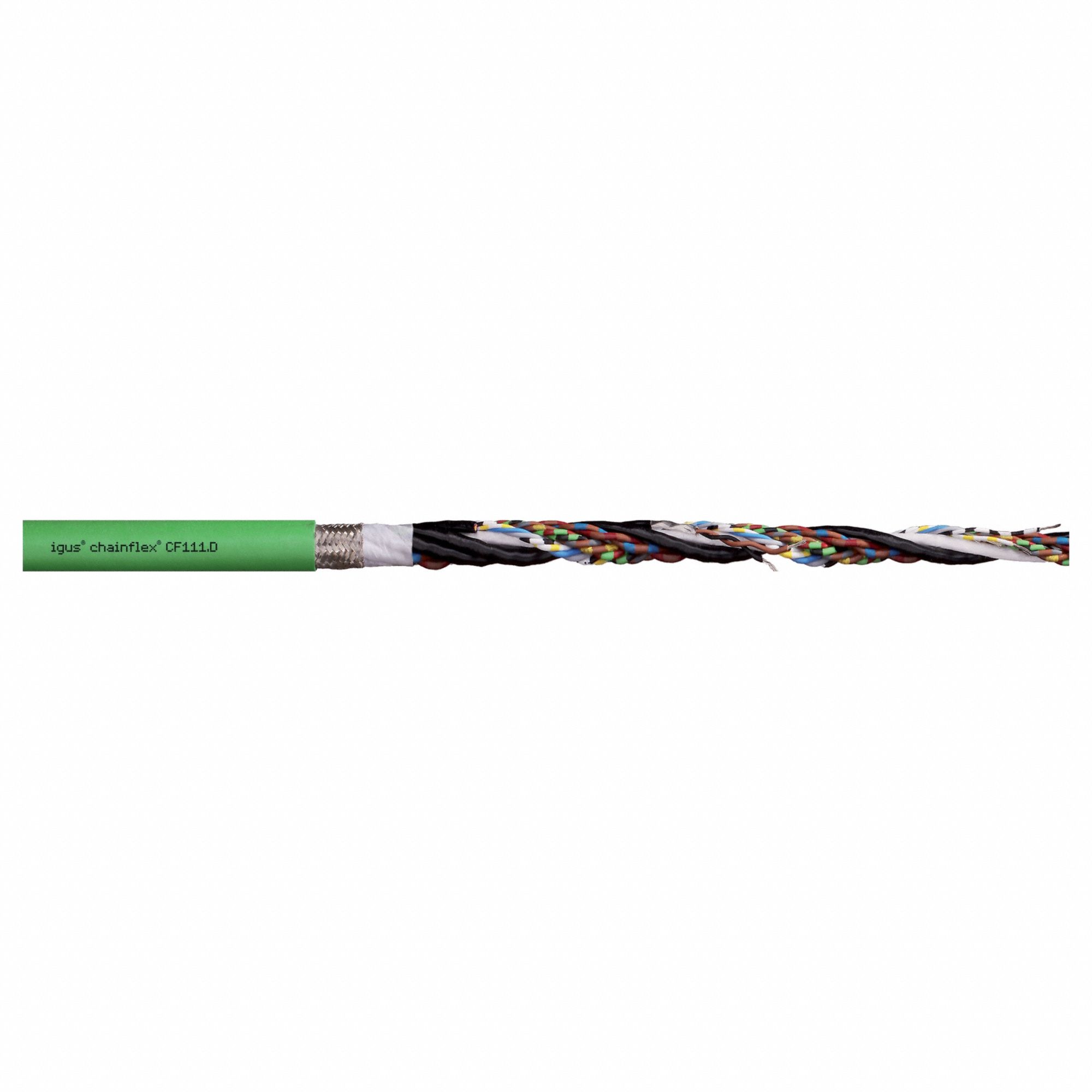

The CHAINFLEX Measuring System Cable (MPN CF111-020-D) is a servo motor feedback cable with a conductor grouping of (3) Pair 26 AWG/(2) Four Pair 26 AWG/(2) 20 AWG. It does not include a ground and is ordered by the foot. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Pr 26 AWG (0.14)/(2) 20 AWG (0.5)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Pair 26 AWG/(2) Four Pair 26 AWG/(2) 20 AWG
Manufacturer Part Number	CF111-020-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
