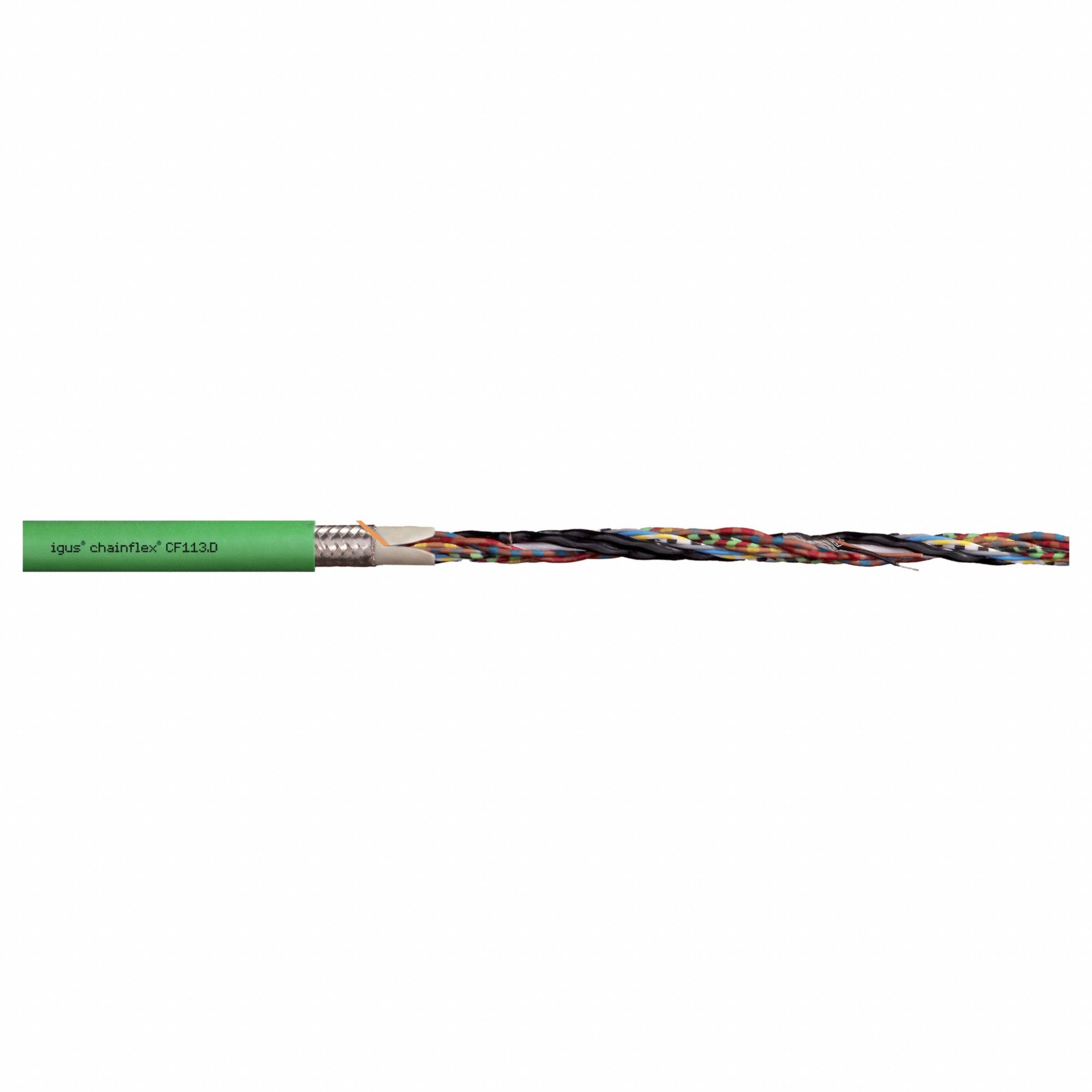

Chainflex 3G-OTH-48377 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48377 CHAINFLEX Measuring System Cable: (4) Pr 26 AWG (0.14)/(4) 26 AWG (0.14)/(4) Shielded 20 AWG (0.50) (MPN CF113-004-D). Key specifications — Conductor Grouping: (4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF113-004-D) is a servo motor feedback cable with a conductor grouping of (4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG. It does not include a ground and is ordered by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible installation.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	AWG (0.14)/(4) Shielded 20 AWG (0.50)
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 26 AWG/(4) 26 AWG/(4) Shielded 20 AWG
Manufacturer Part Number	CF113-004-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
