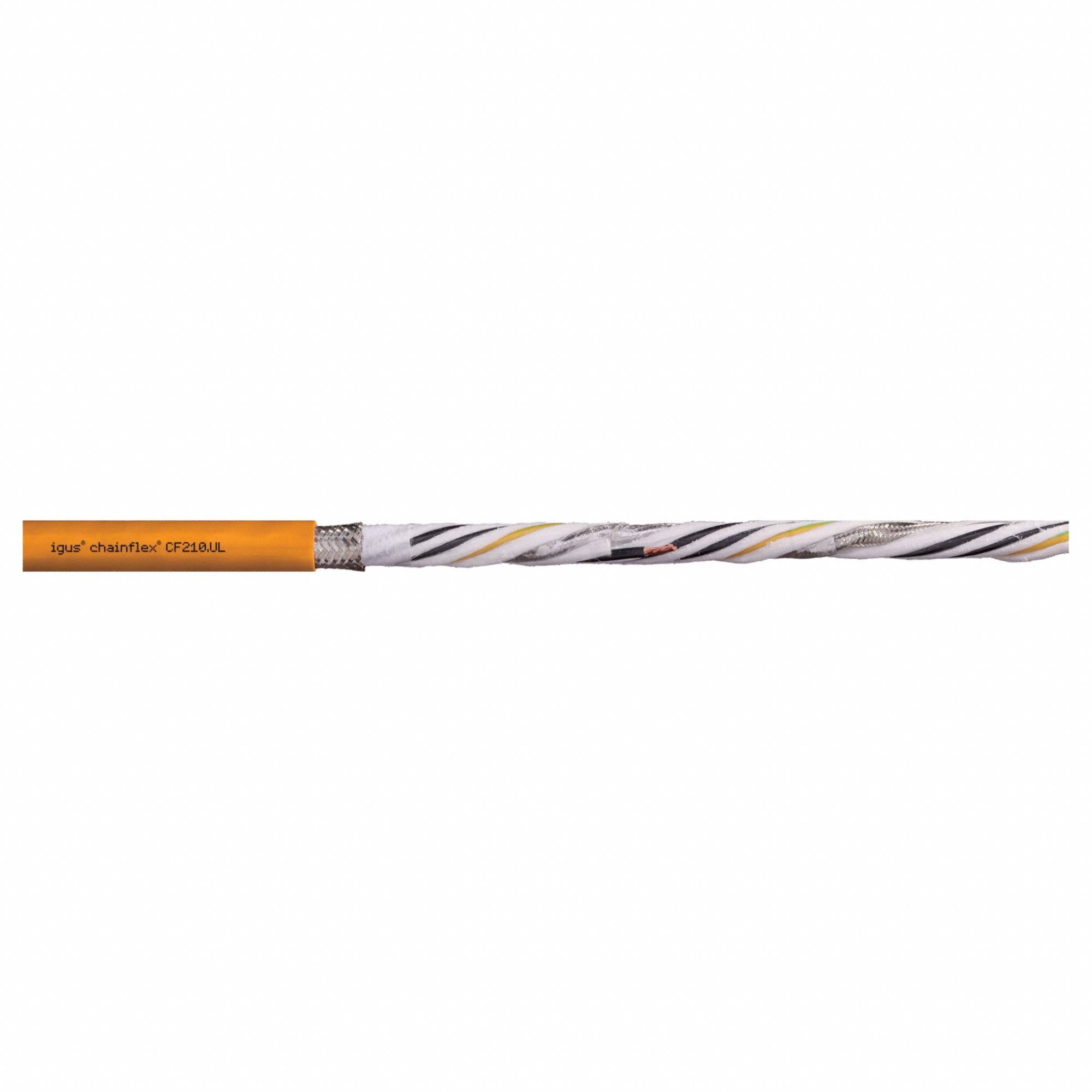

Chainflex 3G-OTH-50448 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50448 CHAINFLEX Servo Motor Cable: (4) 14 AWG (2.5)/Shielded Twisted Pr 16 AWG (1.5), Orange, PVC Jacket (MPN CF210-UL251521). Key specifications — Conductor Grouping: (4) 14 AWG/Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801L73, MPN CF210-UL251521) features a conductor grouping of (4) 14 AWG with a shielded twisted pair of 16 AWG and includes a ground conductor. It is available by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Pr 16 AWG (1.5), Orange, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 14 AWG/Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF210-UL251521
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
