Chainflex 3G-OTH-50365 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50365 CHAINFLEX Servo Motor Cable: (4) 8 AWG (10)/(2) Shielded Twisted Pr 16 AWG (1.5), Green, PVC Jacket (MPN CF21-100150202). Key specifications — Conductor Grouping: (4) 8 AWG/(2) Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

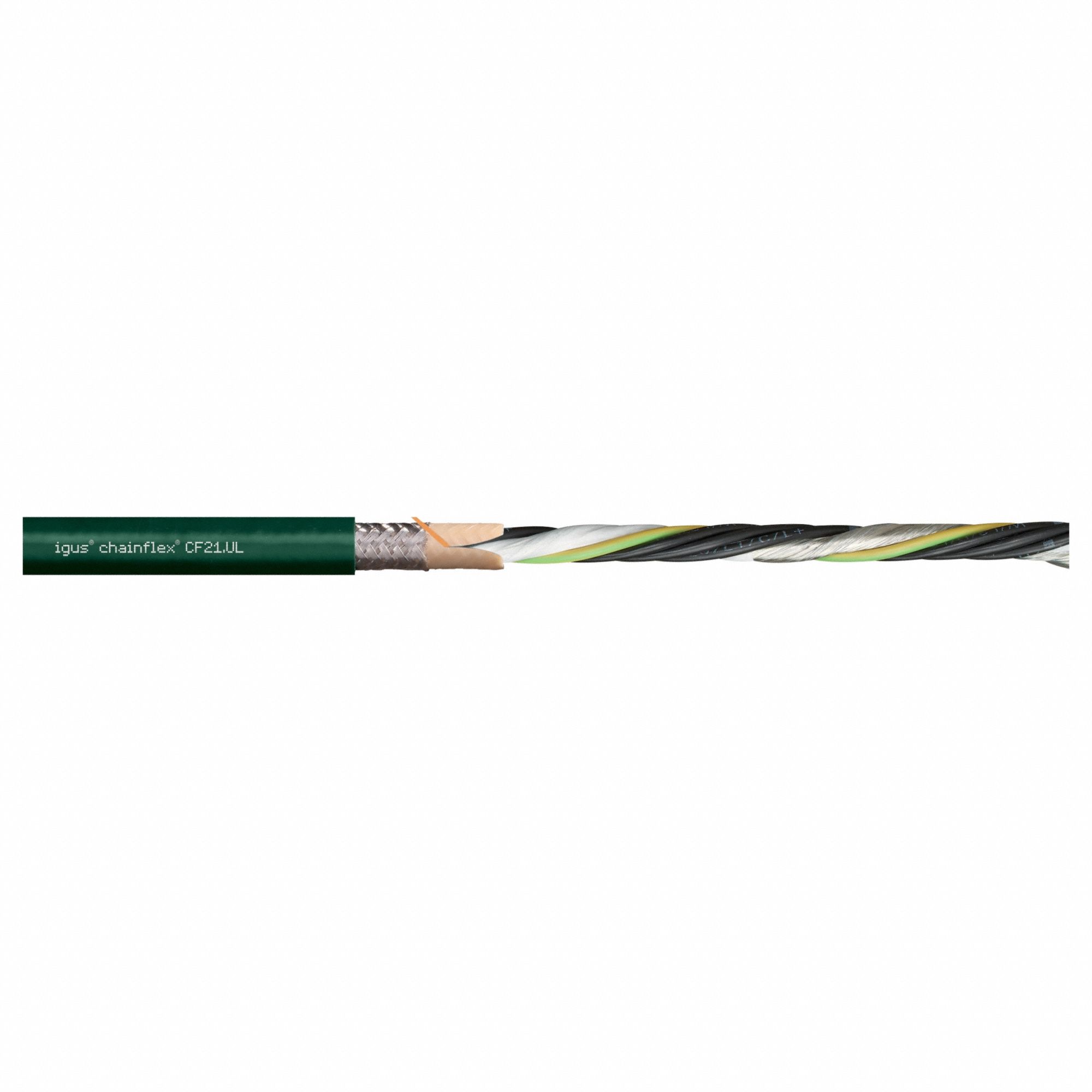

The CHAINFLEX Servo Motor Power Cable (SKU 801L80, MPN CF21-100150202) features a conductor grouping of (4) 8 AWG and (2) shielded twisted pair 16 AWG with a green PVC jacket. It includes a ground conductor and is sold by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Pr 16 AWG (1.5), Green, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 8 AWG/(2) Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF21-100150202
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
