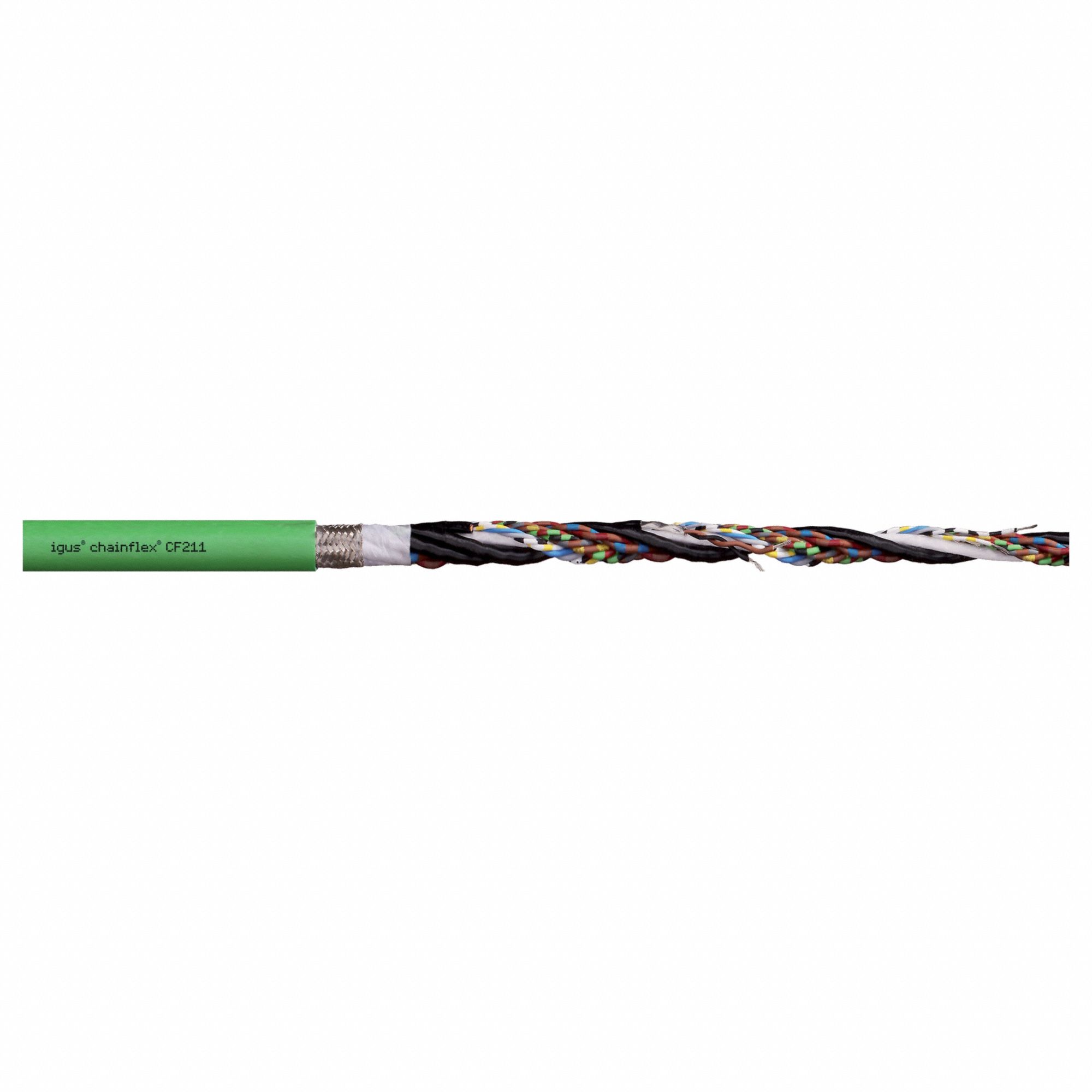

Chainflex 3G-OTH-49234 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49234 CHAINFLEX Measuring System Cable: Green, PVC Jacket, 50 V Volt (MPN CF211-006). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF211-006) is a green, PVC-jacketed servo motor feedback cable rated for 50 V. Its conductor grouping comprises (3) shielded twisted pair 26 AWG, (4) 26 AWG, (4) 24 AWG, and (2) 20 AWG, with no included ground. The cable offers a minimum bend radius factor of 5 x OD for fixed installations and 8 x OD for flexible applications, and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG
Manufacturer Part Number	CF211-006
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
