Chainflex 3G-OTH-48110 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48110 CHAINFLEX Measuring System Cable: Pr 24 AWG (0.25)/(5) 20 AWG (0.50), Green, PVC Jacket, 50 V Volt (MPN CF211-022). Key specifications — Conductor Grouping: Pair 24 AWG/(5) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

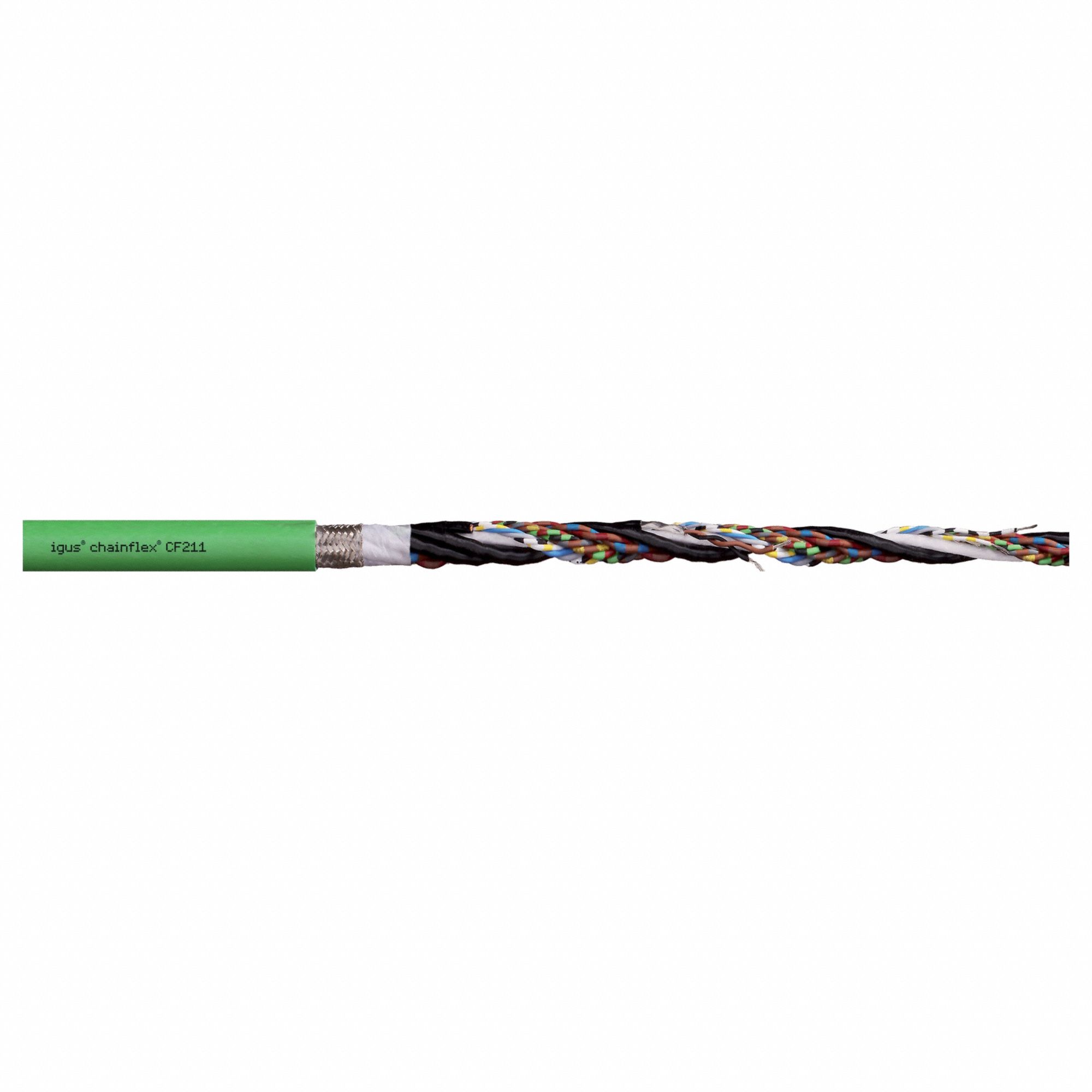

The CHAINFLEX Measuring System Cable (MPN CF211-022) is a servo motor feedback cable with a conductor grouping of Pair 24 AWG/(5) 20 AWG, a green PVC jacket, and a 50 V rating. It does not include a ground and is available by the foot, with a minimum bend radius factor of 5 x OD for fixed installations and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Green, PVC Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	Pair 24 AWG/(5) 20 AWG
Manufacturer Part Number	CF211-022
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
