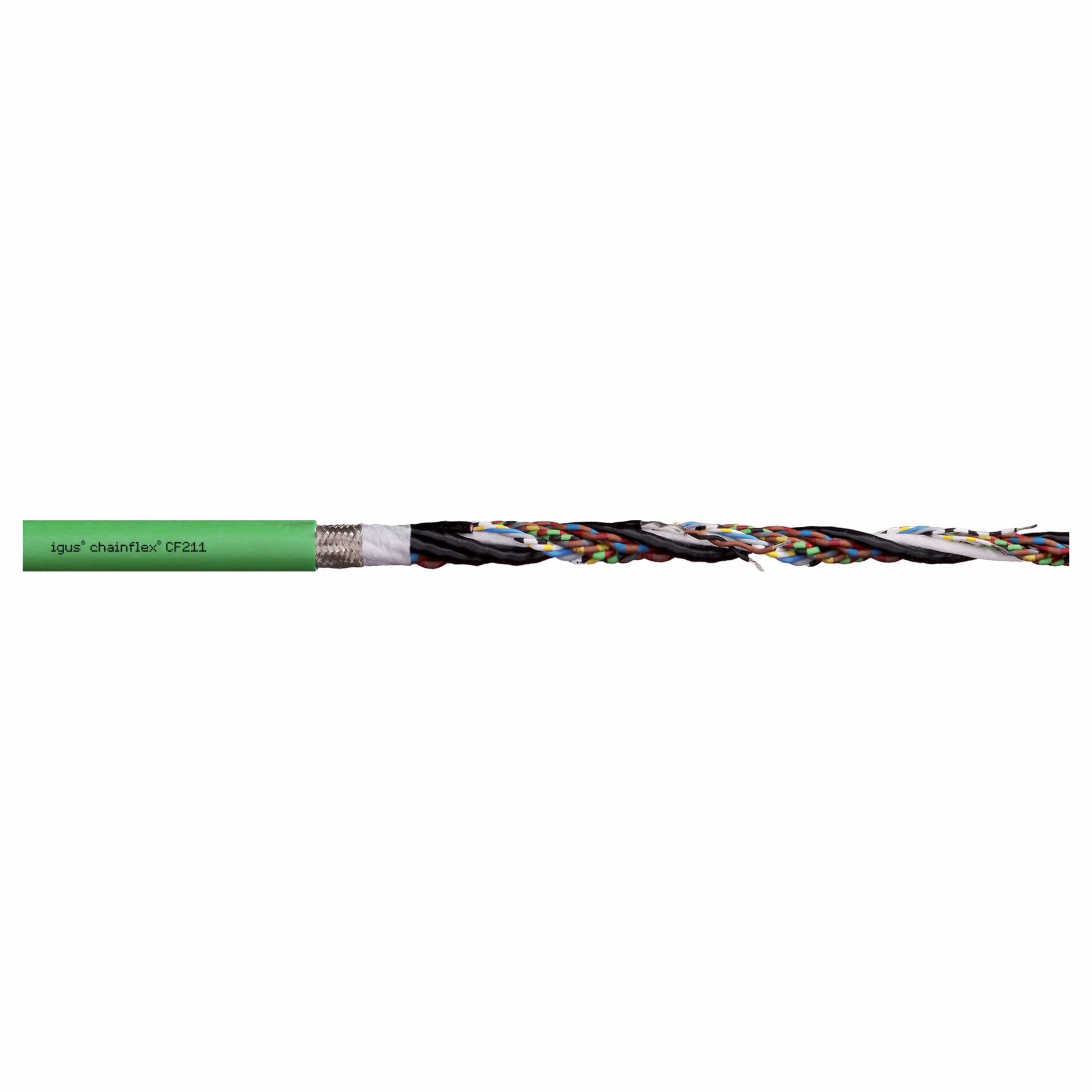

Chainflex 3G-OTH-49816 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49816 CHAINFLEX Measuring System Cable: (6) Pr 24 AWG (0.25), Green, PVC Jacket, 50 V Volt (MPN CF211-037). Key specifications — Conductor Grouping: (6) Pair 24 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (SKU 801LA4) is a servo motor feedback cable with (6) pair 24 AWG conductors, a green PVC jacket, and a 50 V rating. It is available by the foot and does not include a ground. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible use.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Green, PVC Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(6) Pair 24 AWG
Manufacturer Part Number	CF211-037
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
