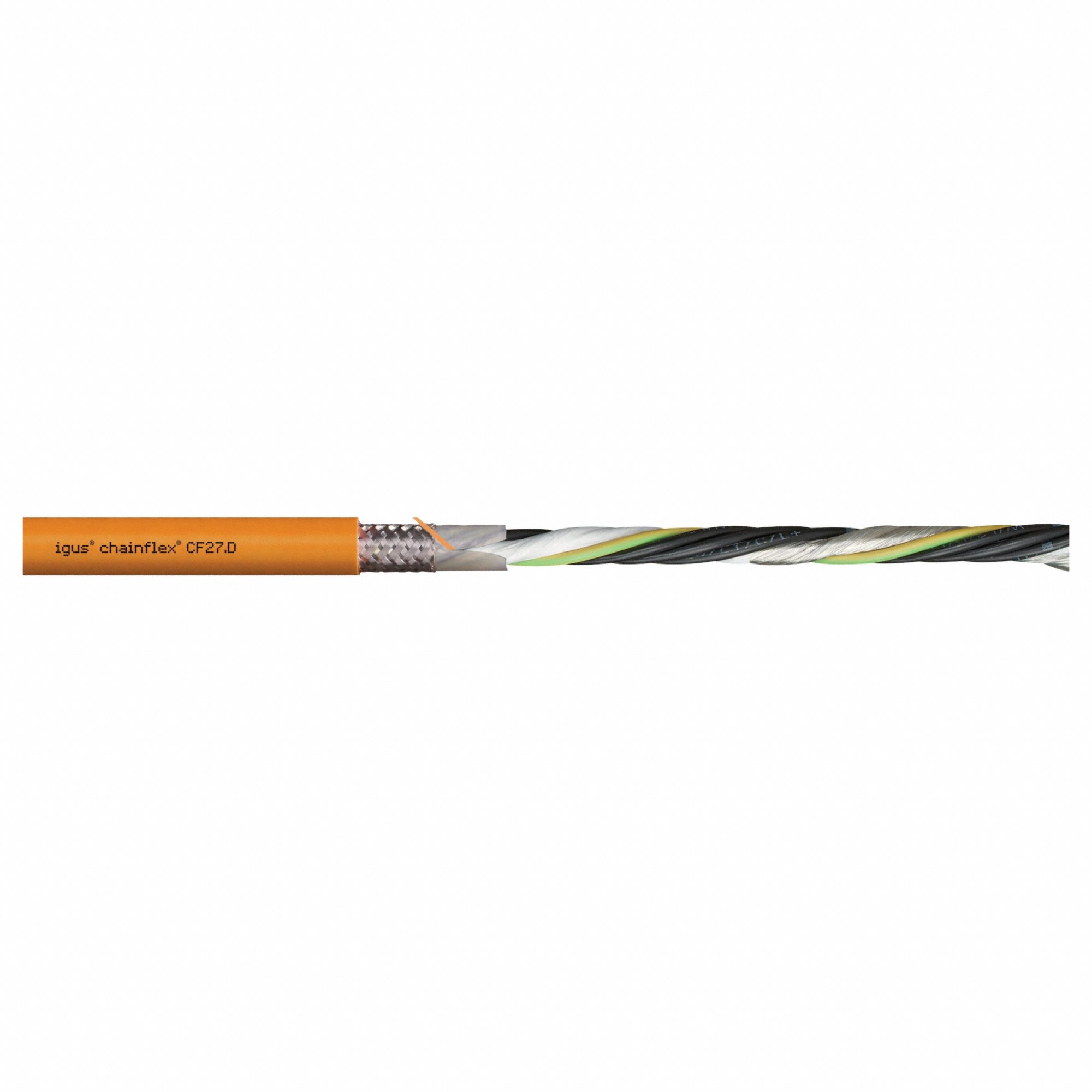

Chainflex 3G-OTH-47208 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47208 CHAINFLEX VFD Servo Motor Cable: (4) 4 AWG (25.0)/(2) Shielded Twisted Pr 16 AWG (1.5), Orange (MPN CF27250150202D). Key specifications — Conductor Grouping: (4) 4 AWG/(2) Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX VFD Servo Motor Cable (SKU 801LR7) is a servo VFD power cable featuring a conductor grouping of (4) 4 AWG/(2) shielded twisted pair 16 AWG with an included ground. It is available by the foot and has a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Twisted Pr 16 AWG (1.5), Orange
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 4 AWG/(2) Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF27250150202D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
