Chainflex 3G-OTH-50534 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50534 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH102254). Key specifications — Conductor Grouping: (4) 14 AWG/Shielded Twisted Pair 17 AWG/Shielded Twisted Pair 22 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

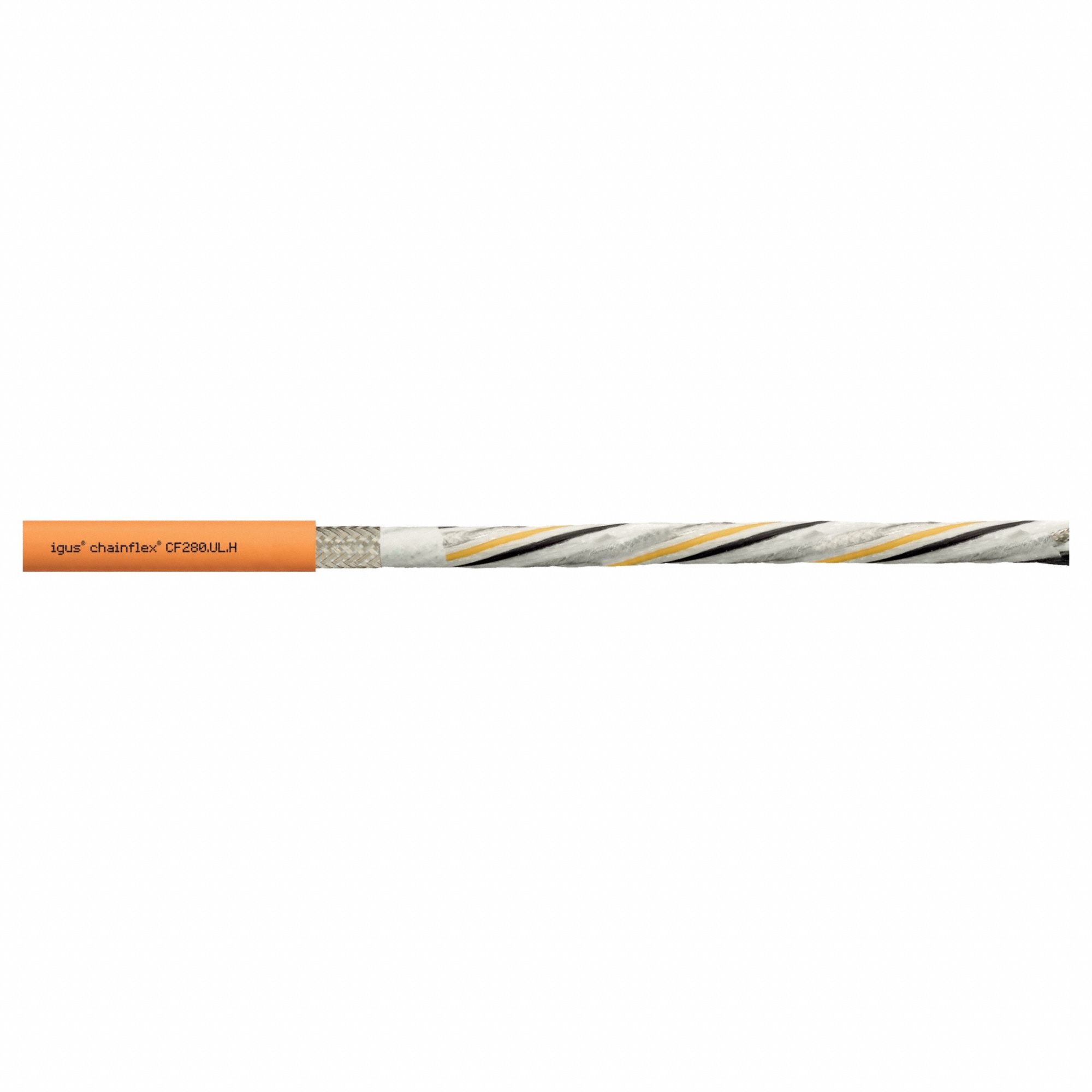

The CHAINFLEX Servo Motor Power Cable (SKU 801LU4, MPN CF280ULH102254) is a 1,000 V rated servo motor cable with a PUR jacket and orange outer sheath. It features a conductor grouping of (4) 14 AWG, a shielded twisted pair 17 AWG, and a shielded twisted pair 22 AWG, with an integrated ground conductor. The cable is sold by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 14 AWG/Shielded Twisted Pair 17 AWG/Shielded Twisted Pair 22 AWG
Manufacturer Part Number	CF280ULH102254
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
