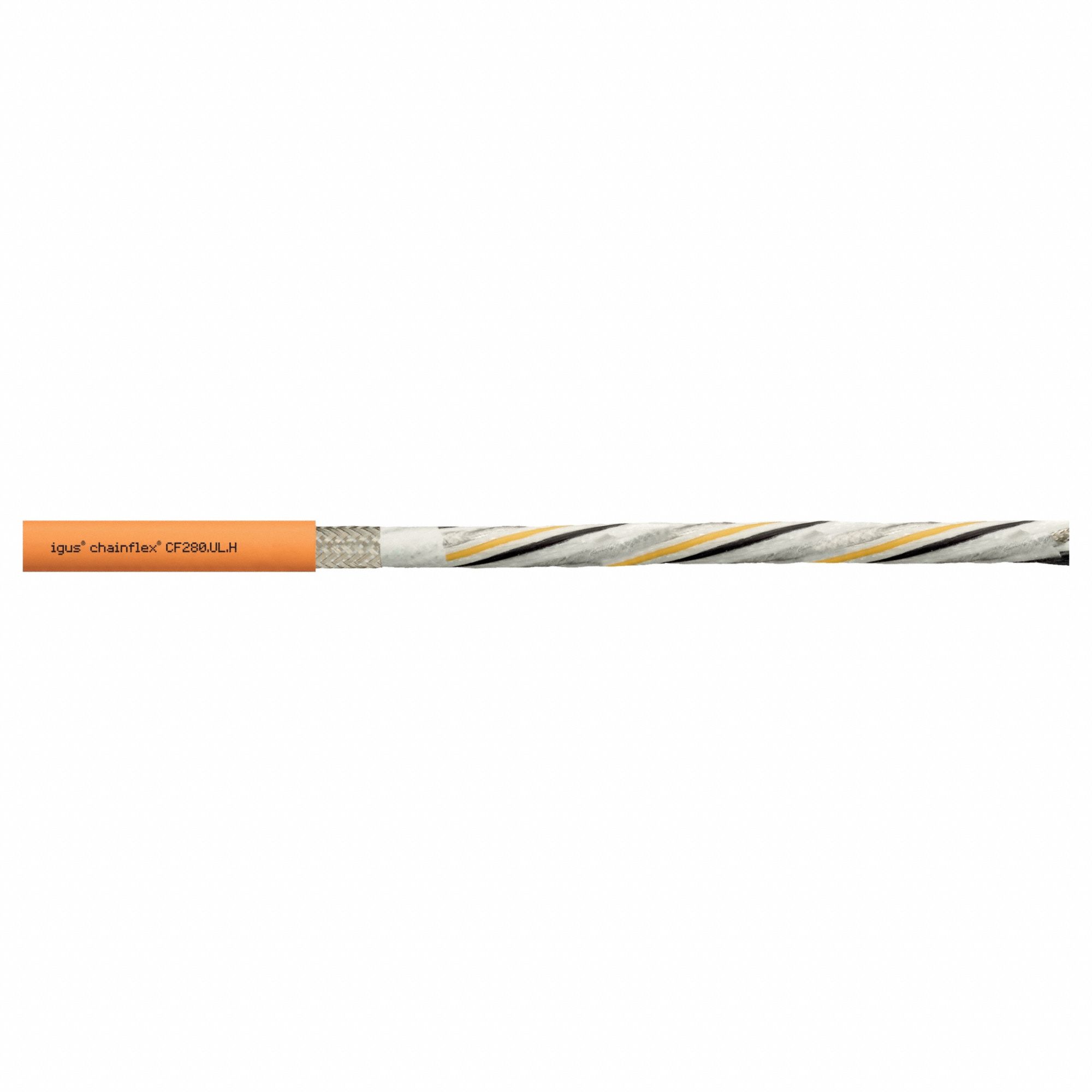

Chainflex 3G-OTH-50544 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50544 CHAINFLEX Servo Motor Cable: (7) 16 AWG (1.5)/Shielded Twisted Pr 18 AWG (0.75), Orange, PUR Jacket (MPN CF280ULH200157). Key specifications — Conductor Grouping: (7) 16 AWG/Shielded Twisted Pair 18 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801LU7, MPN CF280ULH200157) features a conductor grouping of (7) 16 AWG with a shielded twisted pair of 18 AWG, a PUR jacket, and does not include a ground. It is ordered by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Pr 18 AWG (0.75), Orange, PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(7) 16 AWG/Shielded Twisted Pair 18 AWG
Manufacturer Part Number	CF280ULH200157
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
