Chainflex 3G-OTH-50576 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50576 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH206404). Key specifications — Conductor Grouping: (4) 12 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Three Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

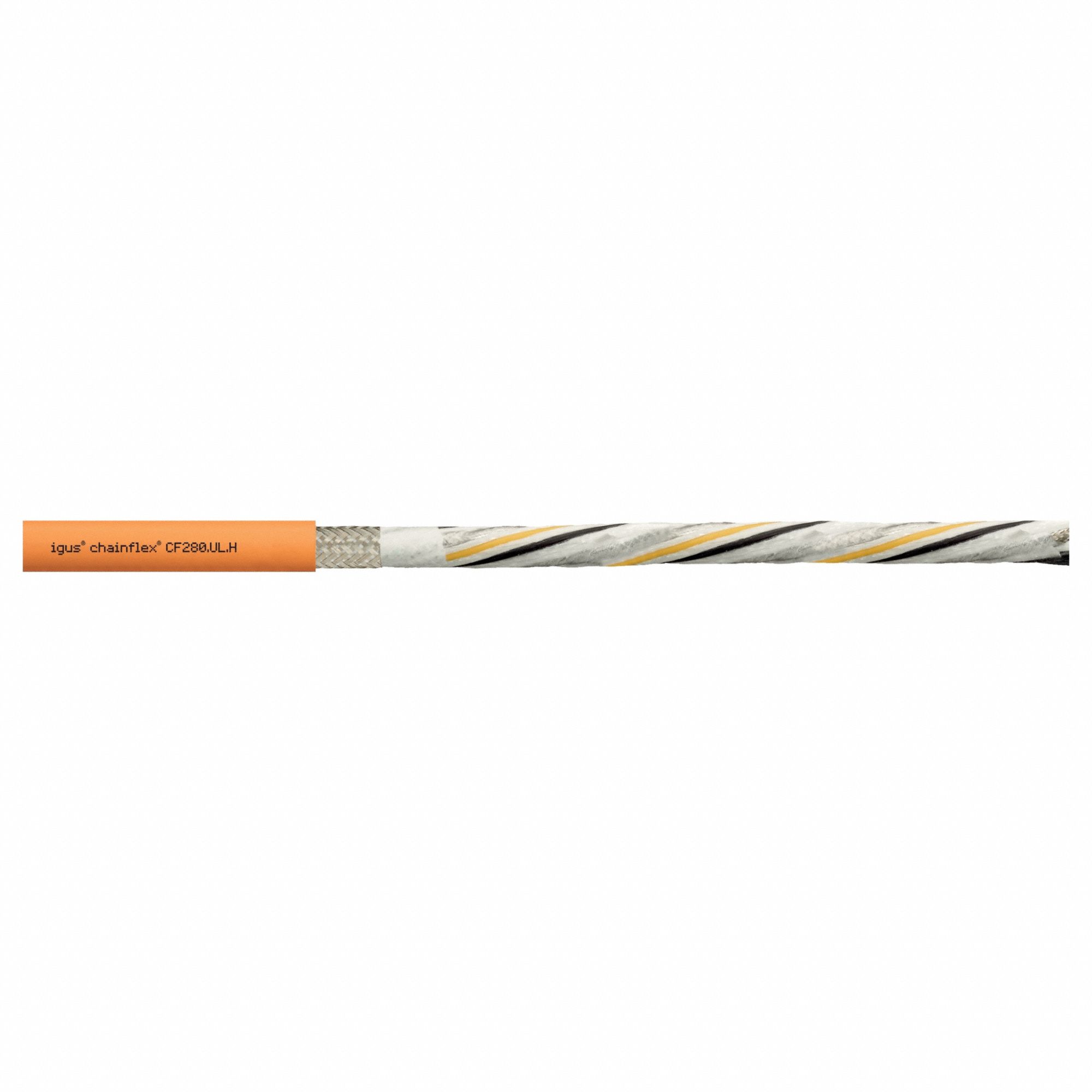

The CHAINFLEX Servo Motor Cable (MPN CF280ULH206404) is a servo motor power cable with a PUR jacket and 1,000 V voltage rating. It features conductor grouping of (4) 12 AWG, shielded twisted pair 18 AWG, and shielded twisted three pair 16 AWG, includes a ground, and has a minimum bend radius factor of 5 x OD for fixed and 8 x OD for flexible applications. Overall length is order by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 12 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Three Pair 16 AWG
Manufacturer Part Number	CF280ULH206404
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
