Chainflex 3G-OTH-50608 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50608 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH501154). Key specifications — Conductor Grouping: (4) 16 AWG/Shielded Twisted Pair 18 AWG/(2) Pair 26 AWG/Shielded Twisted Pair 24 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

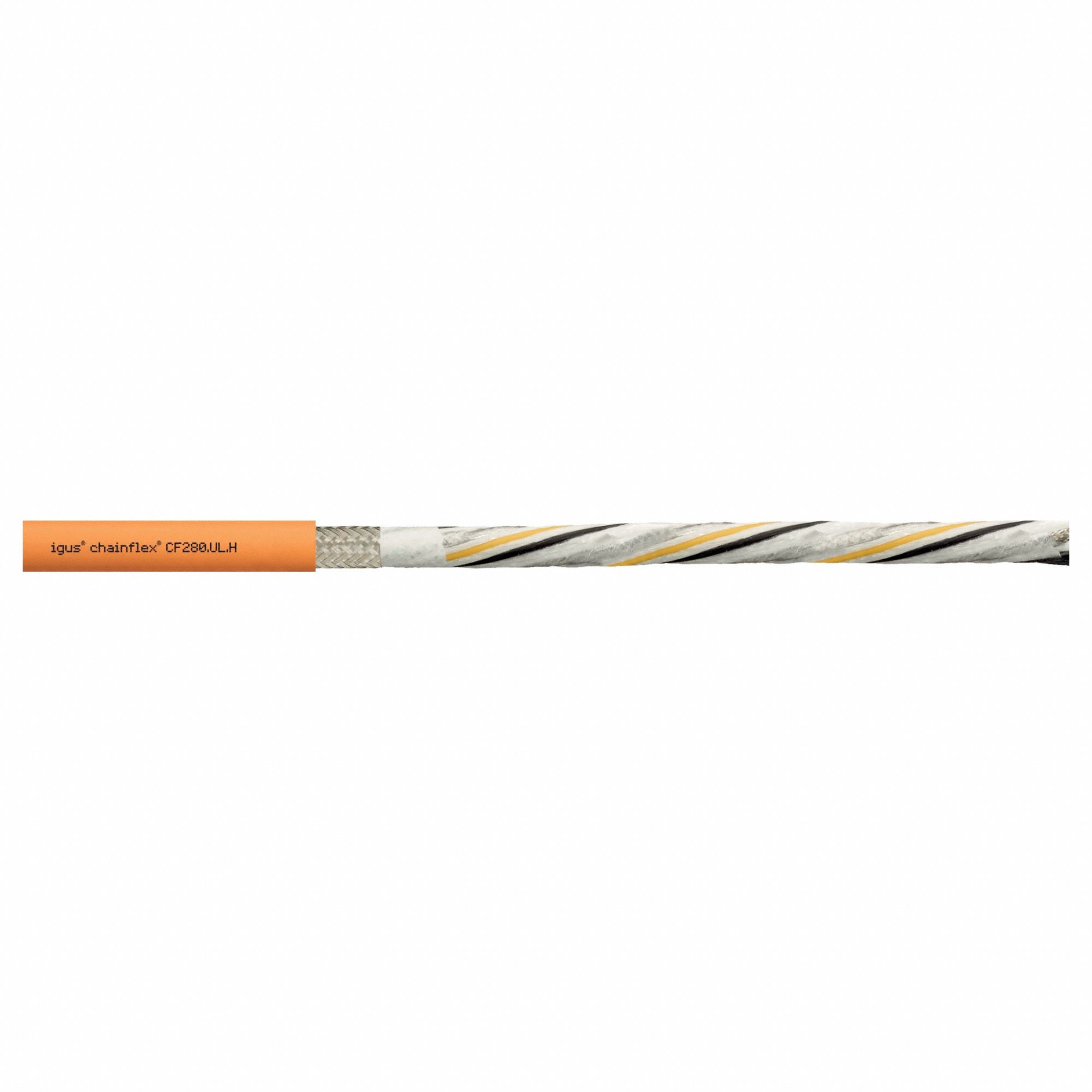

The CHAINFLEX Servo Motor Power Cable (MPN CF280ULH501154) is a 1,000 V rated cable with a PUR jacket and orange outer sheath. Its conductor grouping includes (4) 16 AWG, shielded twisted pair 18 AWG, (2) pair 26 AWG, and shielded twisted pair 24 AWG, with an integrated ground. The cable is sold by the foot and features a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible routing.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 16 AWG/Shielded Twisted Pair 18 AWG/(2) Pair 26 AWG/Shielded Twisted Pair 24 AWG
Manufacturer Part Number	CF280ULH501154
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
