Chainflex 3G-OTH-46187 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46187 CHAINFLEX Motor Cable: 6 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-160-04). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: UL Listed; Product Type: Motor Cable.
Brand: Chainflex

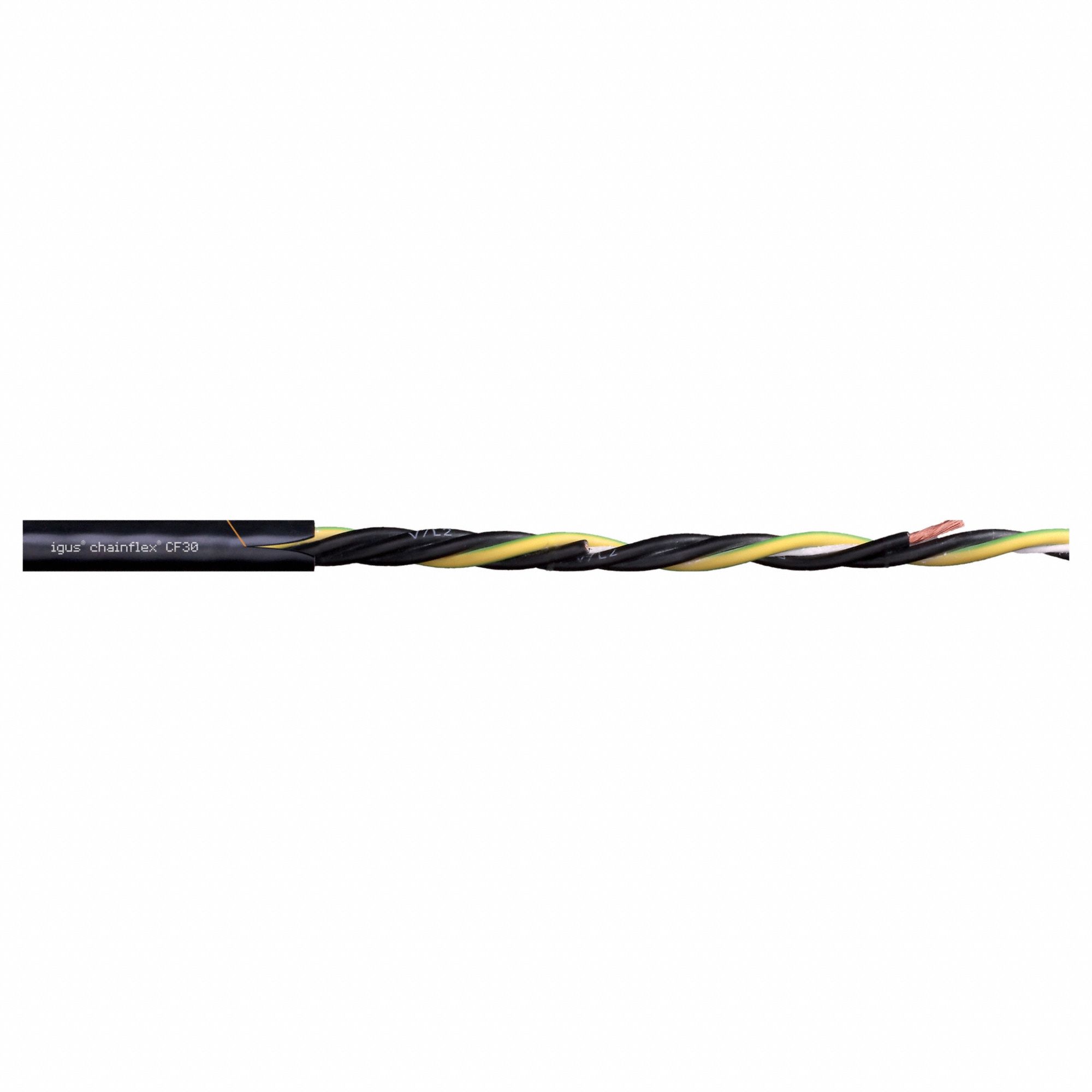

The CHAINFLEX Motor Cable: 6 AWG (SKU 801LY4, MPN CF30-160-04) is a UL Listed continuous flexing power cable for VFDs from the Chainflex CF30 series. It features 4 conductors, a PVC jacket, a 1,000 V rating, and includes a ground conductor. The cable is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	UL Listed
Conductors	4
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-160-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
