Chainflex 3G-OTH-45558 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45558 CHAINFLEX Motor Cable: 10 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-60-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: IPA 14644-1.
Brand: Chainflex

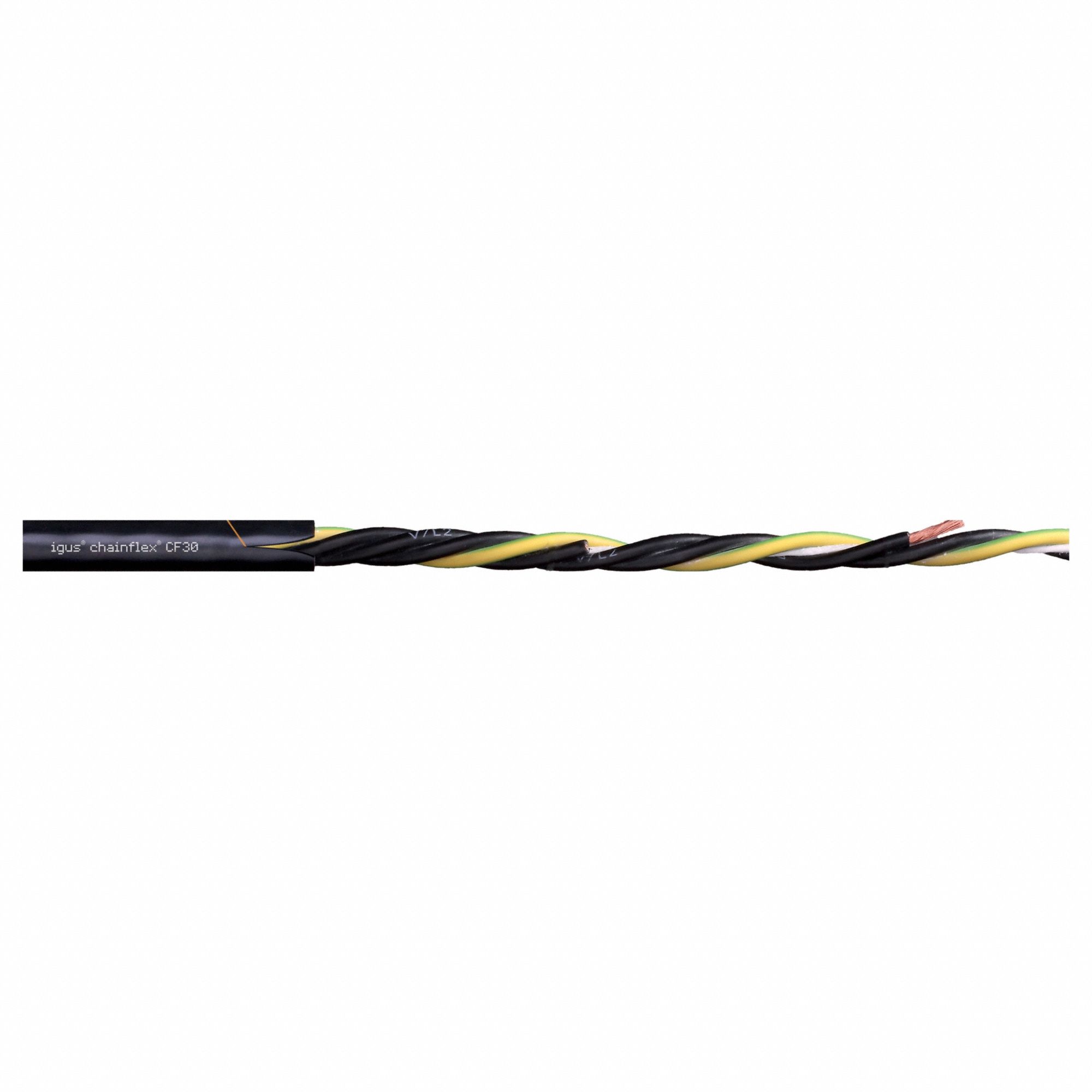

The CHAINFLEX Motor Cable: 10 AWG (SKU 801LZ1, MPN CF30-60-05) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. It features 5 copper conductors with a PVC jacket, rated at 1,000 V, and includes a ground conductor. The cable is UV/sunlight resistant, complies with IPA 14644-1 standards, and offers minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	5
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-60-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
