Chainflex 3G-OTH-45328 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45328 CHAINFLEX Motor Cable: 14 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-25-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CF240.02.24 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

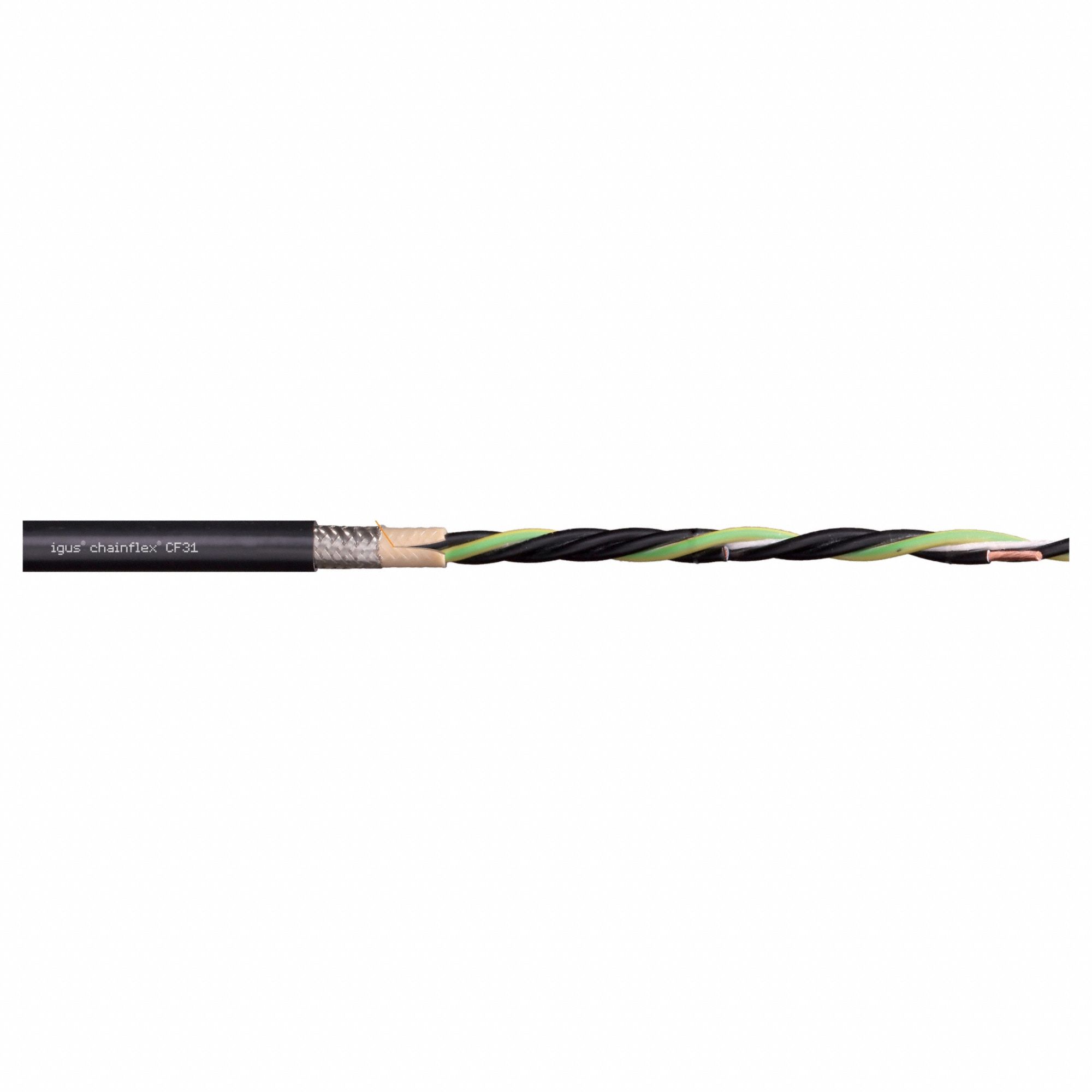

The CHAINFLEX Motor Cable: 14 AWG (SKU 801LZ8) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. This 5-conductor, single-conductor-configuration cable features copper conductors, includes a ground, and is rated at 1,000 V with a PVC jacket. It offers oil and grease resistance and meets CF240.02.24 ISO Class 1 standards for the outer jacket material, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF240.02.24 ISO Class 1 (Outer Jacket Material)
Conductors	5
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-25-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
