Chainflex 3G-OTH-45448 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45448 CHAINFLEX Motor Cable: 12 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-40-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CF240.02.24 ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

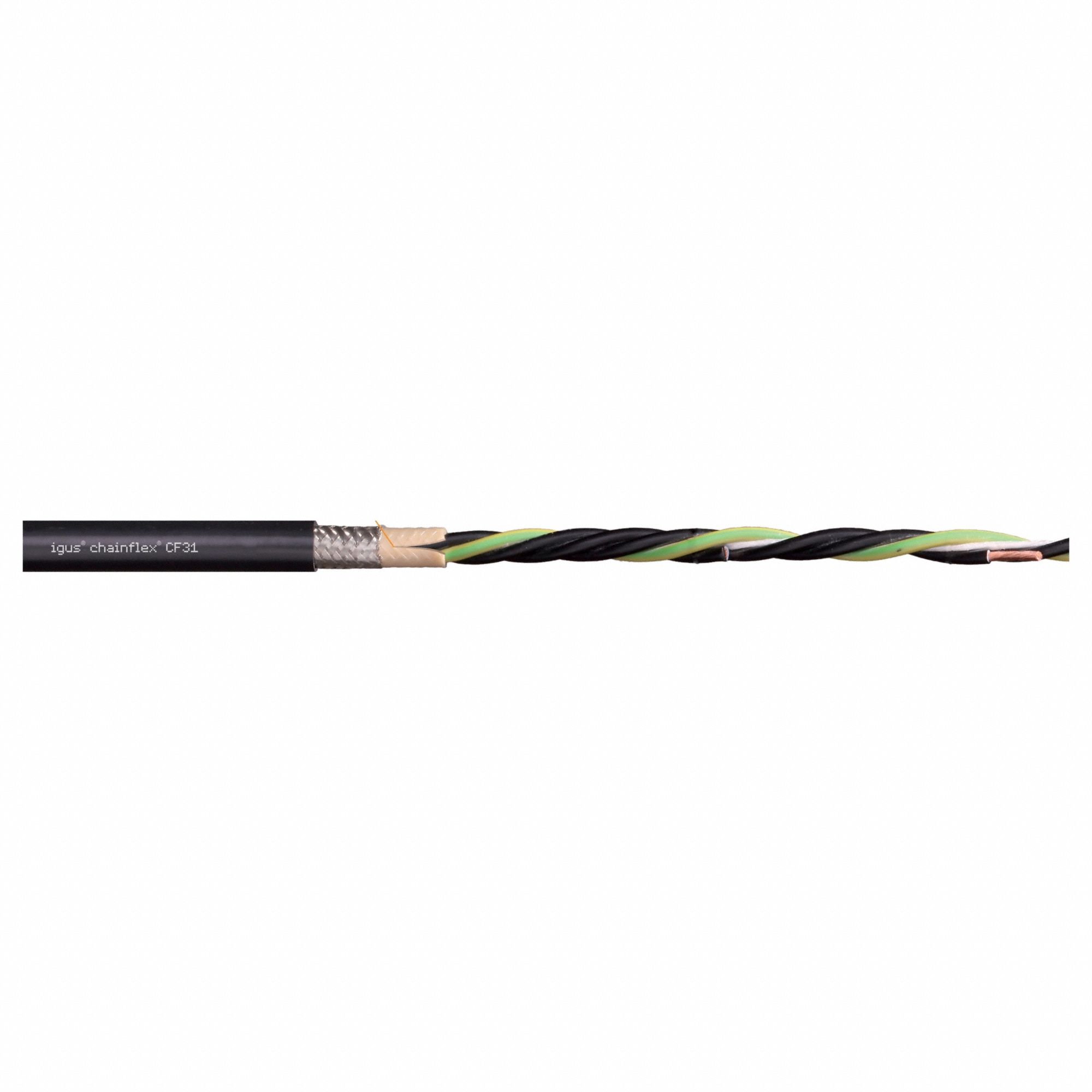

The CHAINFLEX Motor Cable: 12 AWG (SKU 801M02, MPN CF31-40-05) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 5 conductors of single copper wire, includes a ground, and has a PVC jacket rated for 1,000 V. The cable is UV/sunlight resistant and meets CF240.02.24 ISO Class 1 outer jacket material standards, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF240.02.24 ISO Class 1 (Outer Jacket Material)
Conductors	5
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-40-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
