Chainflex 3G-OTH-46234 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46234 CHAINFLEX Motor Cable: 10 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-60-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VW-1.
Brand: Chainflex

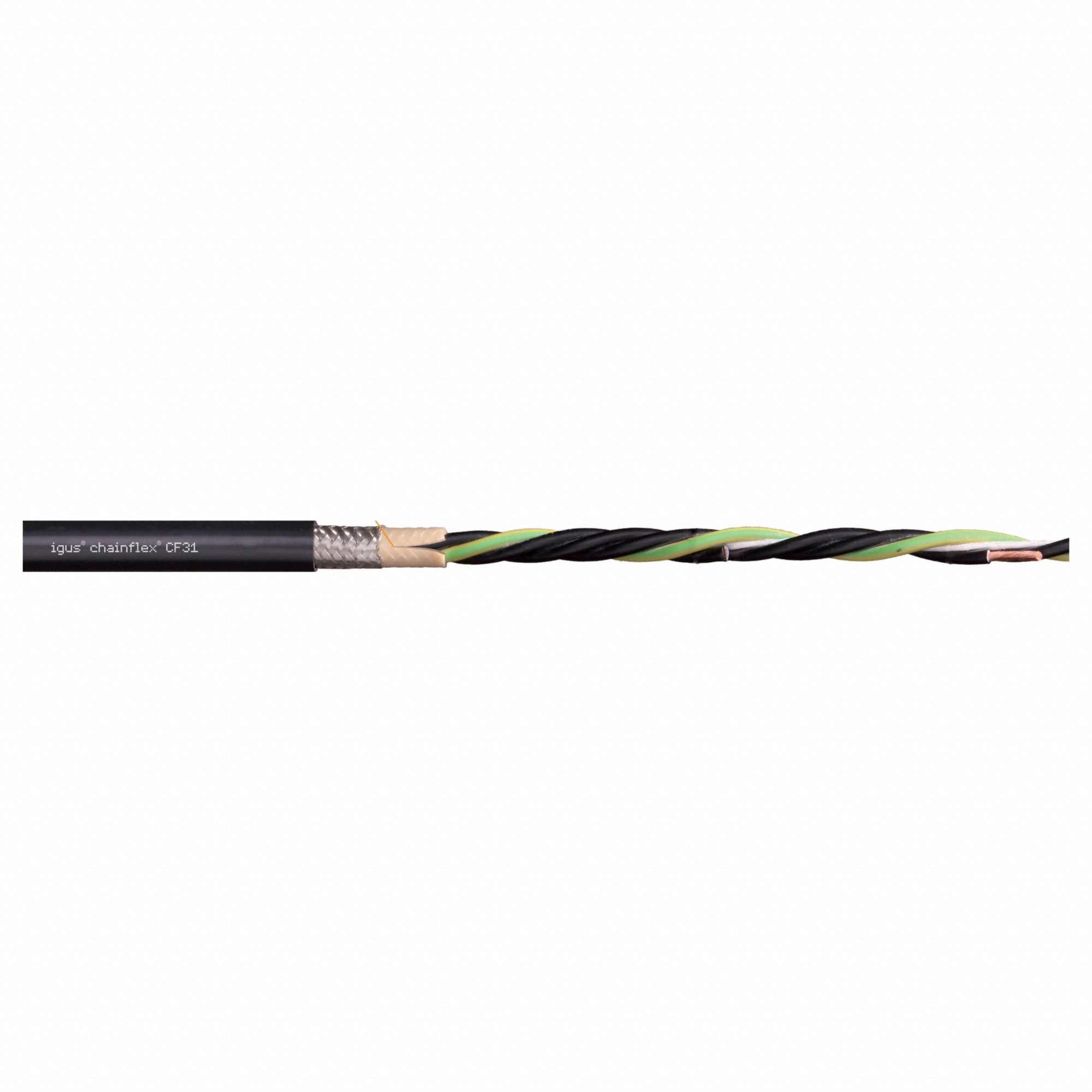

The CHAINFLEX Motor Cable: 10 AWG (SKU 801M05, MPN CF31-60-05) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. This 5-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, includes a ground, and is rated at 1,000 V. It offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, with UV/sunlight resistance and VW-1 standard compliance.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	5
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-60-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
