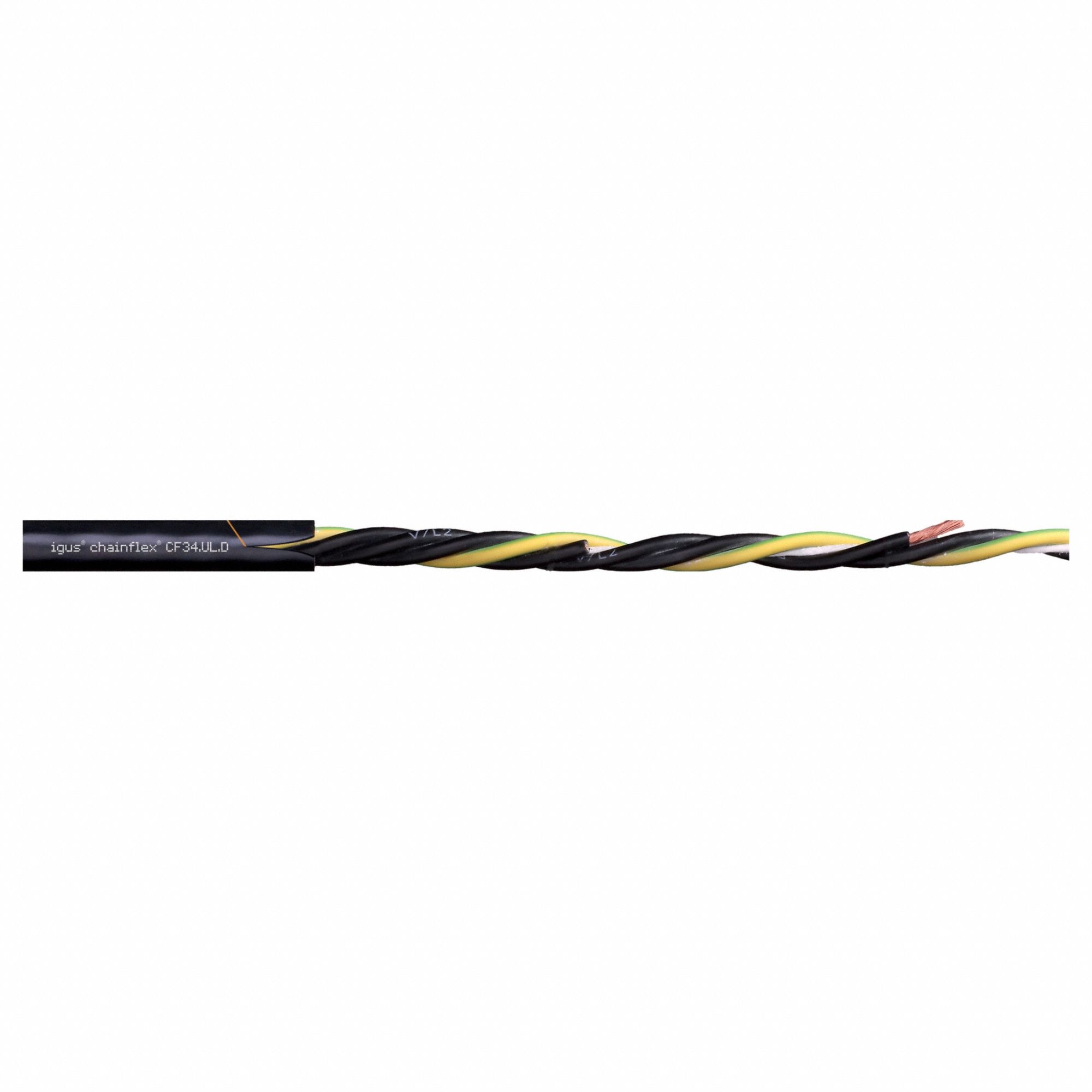

Chainflex 3G-OTH-46617 — Spesifikasi Teknis
The CHAINFLEX Motor Cable: 6 AWG is a continuous flexing power cable from the Chainflex series, designed as a motor cable with 5 conductors and a TPR jacket rated for 1,000 V. It includes a ground conductor, is UV/sunlight resistant, and meets NFPA 79-2012 Chapter 12.9 standards. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Order by the Foot, TPR Jacket, 1,000 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | NFPA 79-2012 Chapter 12.9 |
| Conductors | 5 |
| Cable Series | CF34-UL |
| Product Type | Motor Cable |
| Includes Ground | Yes |
| Resistance Properties | UV/Sunlight Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF34-160-05 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
