Chainflex 3G-OTH-49868 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49868 CHAINFLEX Measuring System Cable: Green, PVC Jacket, 50 V Volt (MPN CF884-006). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

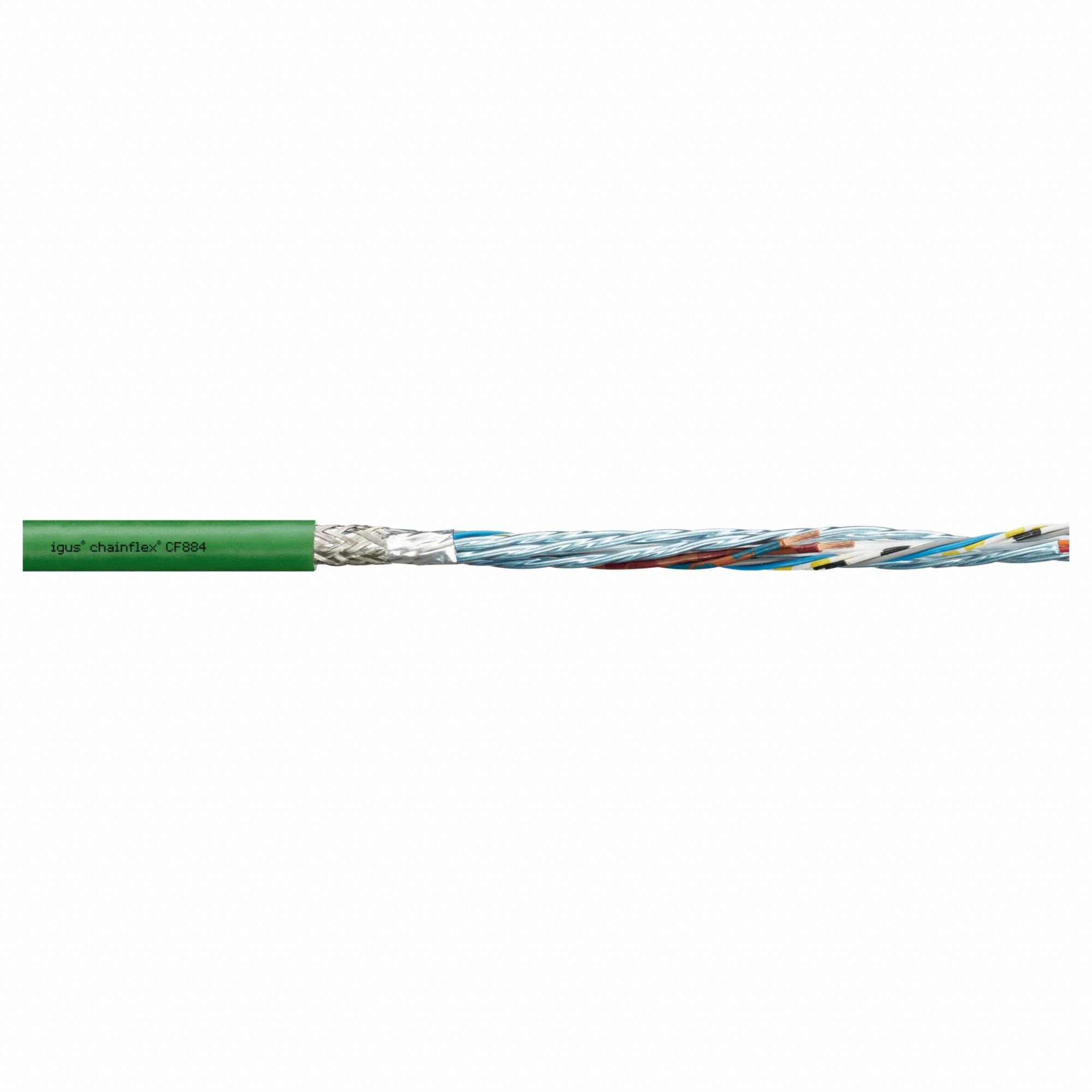

The CHAINFLEX Measuring System Cable (MPN CF884-006) is a servo motor feedback cable with a green PVC jacket rated for 50 V. It features a conductor grouping of (3) shielded twisted pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG, does not include a ground, and is sold by the foot. The cable has a minimum bend radius factor of 8 x OD for fixed installations and 12 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG
Manufacturer Part Number	CF884-006
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
