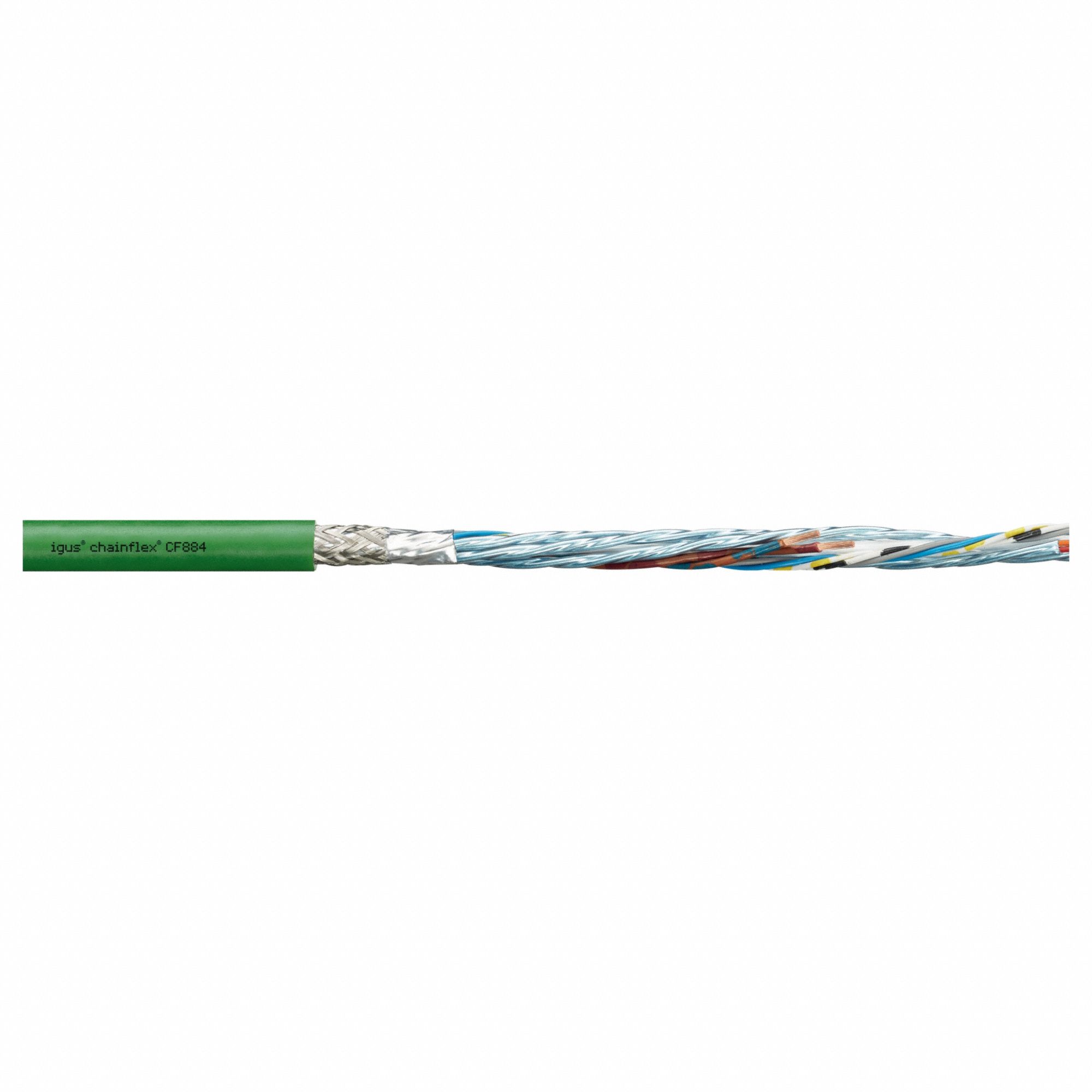

Chainflex 3G-OTH-49898 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49898 CHAINFLEX Measuring System Cable: (4) Pr 26 AWG (0.14)/(4) 20 AWG (0.50), Green, PVC Jacket (MPN CF884-015). Key specifications — Conductor Grouping: (4) Pair 26 AWG/(4) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF884-015) is a servo motor feedback cable with a conductor grouping of (4) Pair 26 AWG/(4) 20 AWG, a green PVC jacket, and no included ground. It is sold by the foot and has a minimum bend radius factor of 8 x OD for fixed installation and 12 x OD for flexible installation.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Green, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 26 AWG/(4) 20 AWG
Manufacturer Part Number	CF884-015
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
