Chainflex 3G-OTH-45960 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45960 CHAINFLEX Motor Cable: 6 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-160-01). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-1.
Brand: Chainflex

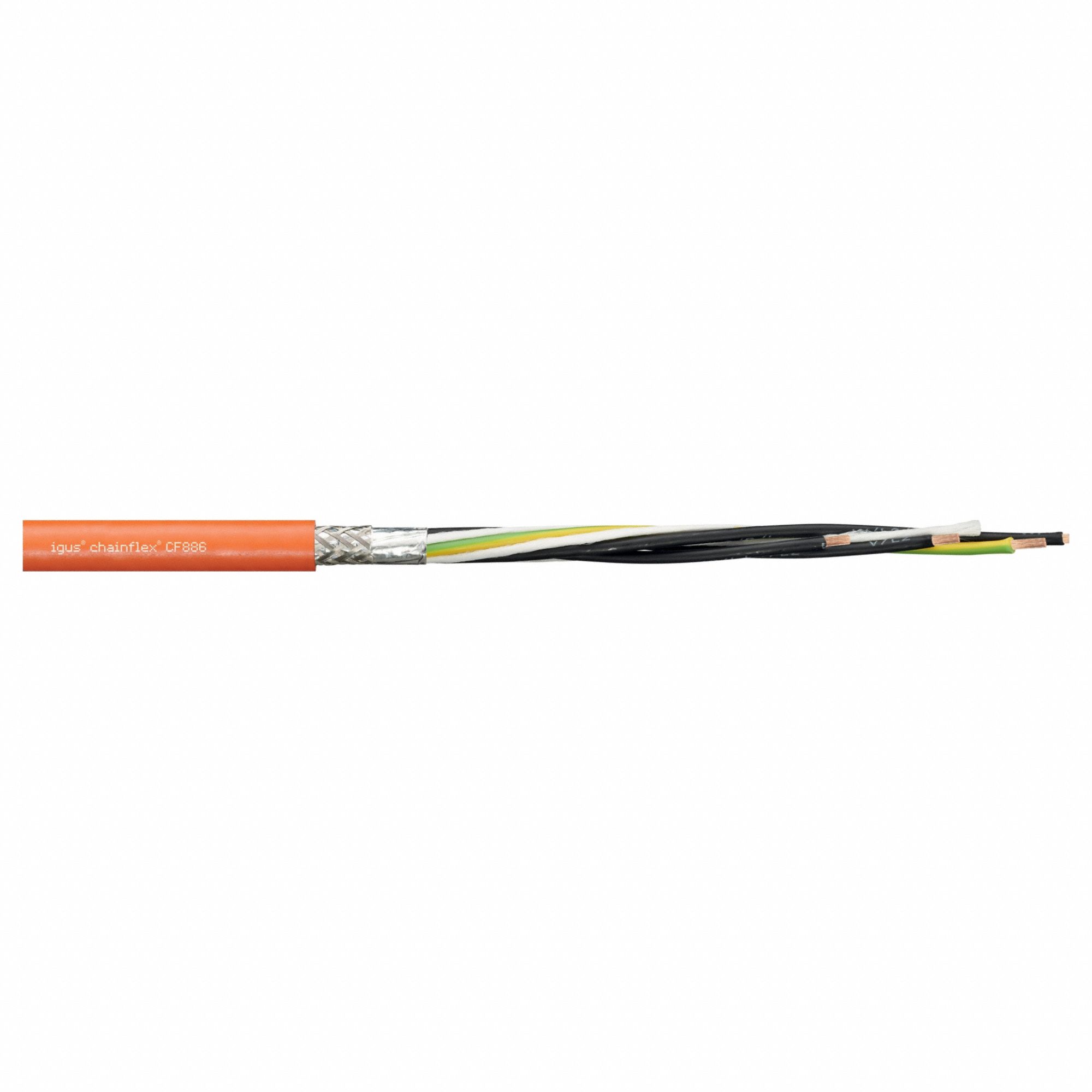

The CHAINFLEX Motor Cable: 6 AWG (SKU 801M51, MPN CF886-160-01) is a continuous flexing power cable for VFDs from the Chainflex series. This single-conductor copper cable includes a ground, is oil and grease resistant, and meets FT-1 standards. It features a PVC jacket, 1,000 V rating, and minimum bend radius factors of 8 x OD (fixed), 12 x OD (flexible), and 15 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	1
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF886-160-01
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
