Chainflex 3G-OTH-45214 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45214 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-25-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

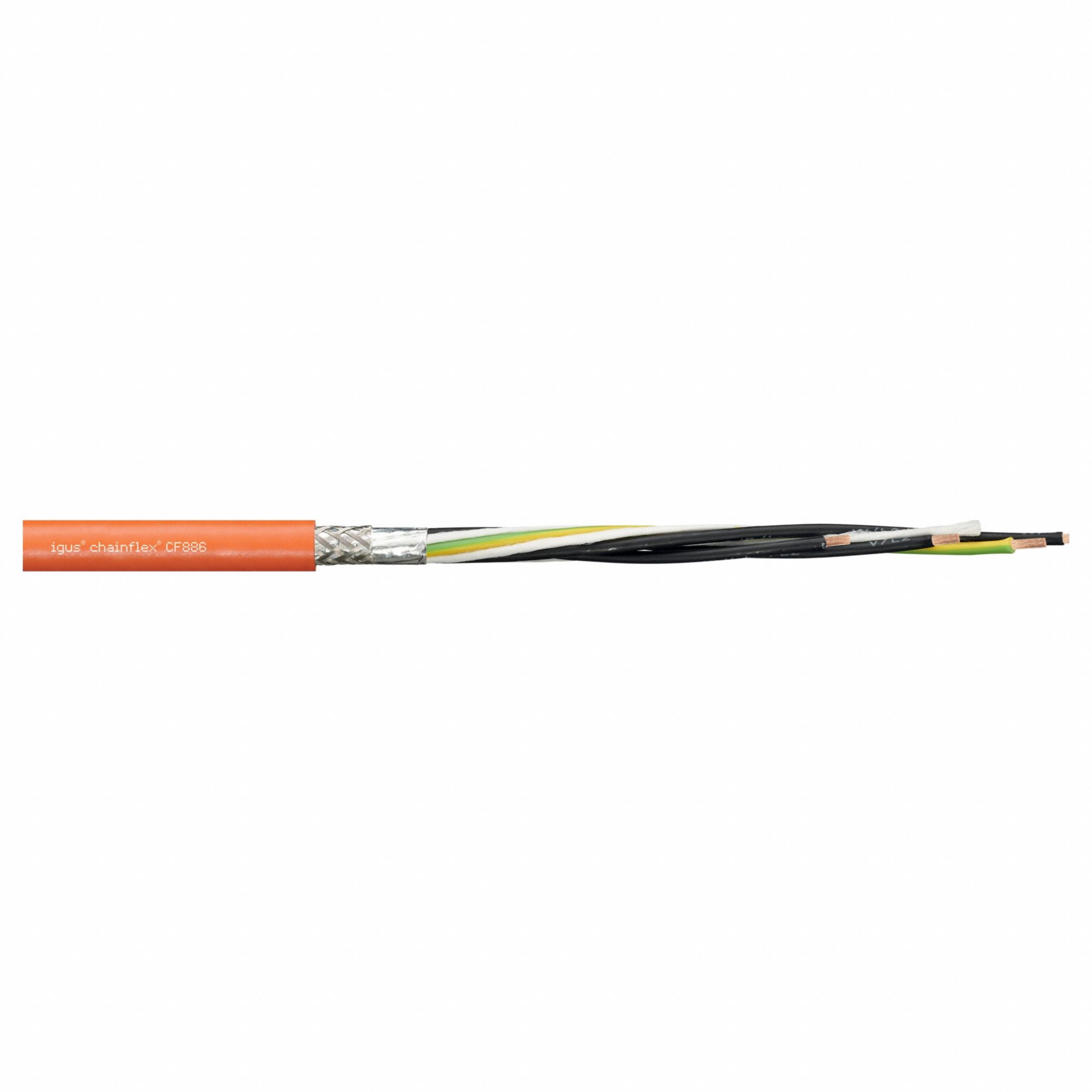

The CHAINFLEX Motor Cable: 14 AWG (SKU 801M54, MPN CF886-25-04) is a continuous flexing power cable for VFDs from the Chainflex series. It features 4 conductors of 14 AWG copper with a PVC jacket, rated at 1,000 V, and includes a ground conductor. The cable meets FT-1 flame retardant standards and offers minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	4
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF886-25-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
