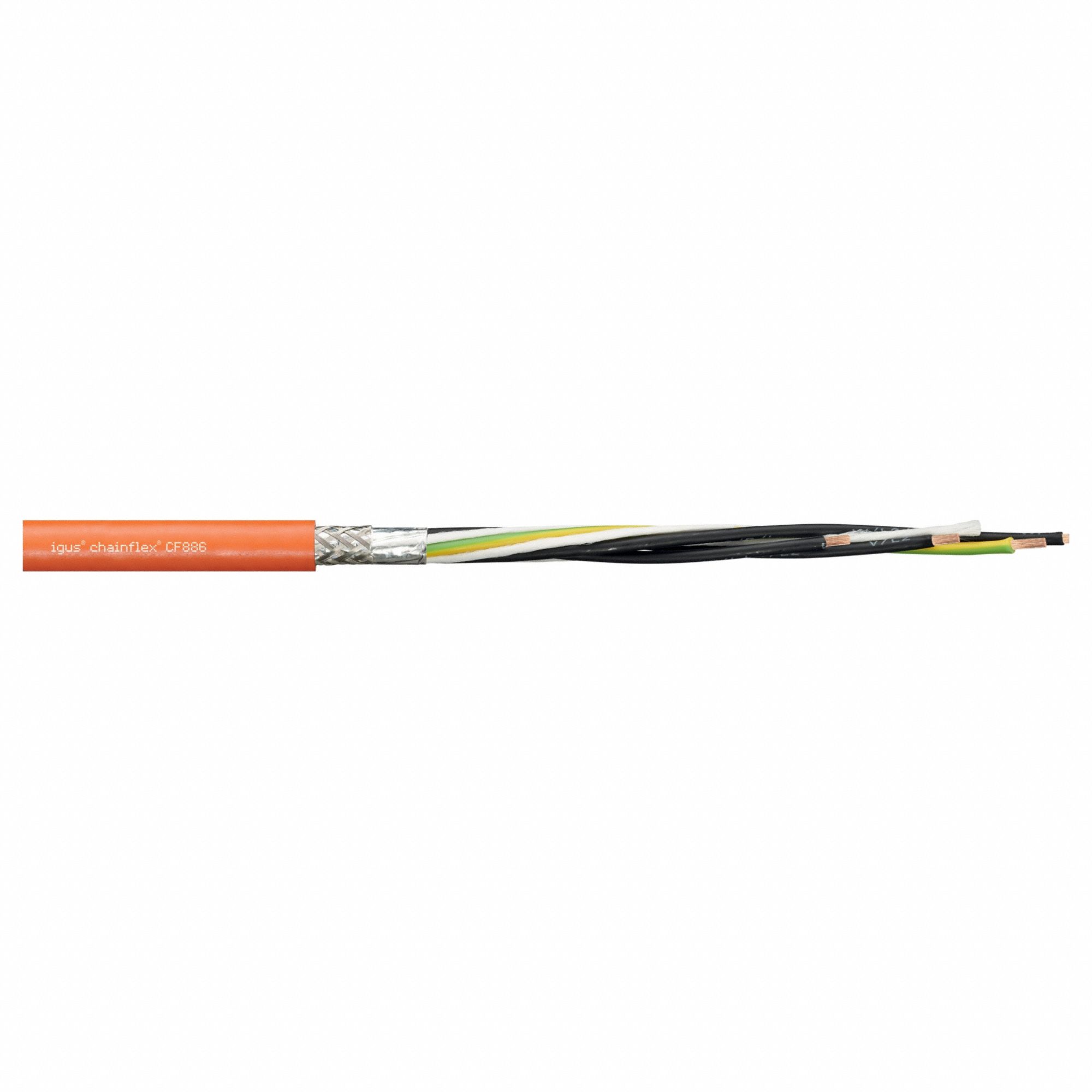

Chainflex 3G-OTH-46045 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46045 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-40-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CSA.
Brand: Chainflex

The CHAINFLEX Motor Cable: 12 AWG (SKU 801M56, MPN CF886-40-04) is a continuous flexing power cable for VFDs from the Chainflex series. This CSA-certified, oil- and grease-resistant cable features four copper conductors with a PVC jacket, includes a ground, and is rated for 1,000 V. It offers minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Conductors	4
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF886-40-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
