Chainflex 3G-OTH-49987 — Spesifikasi Teknis

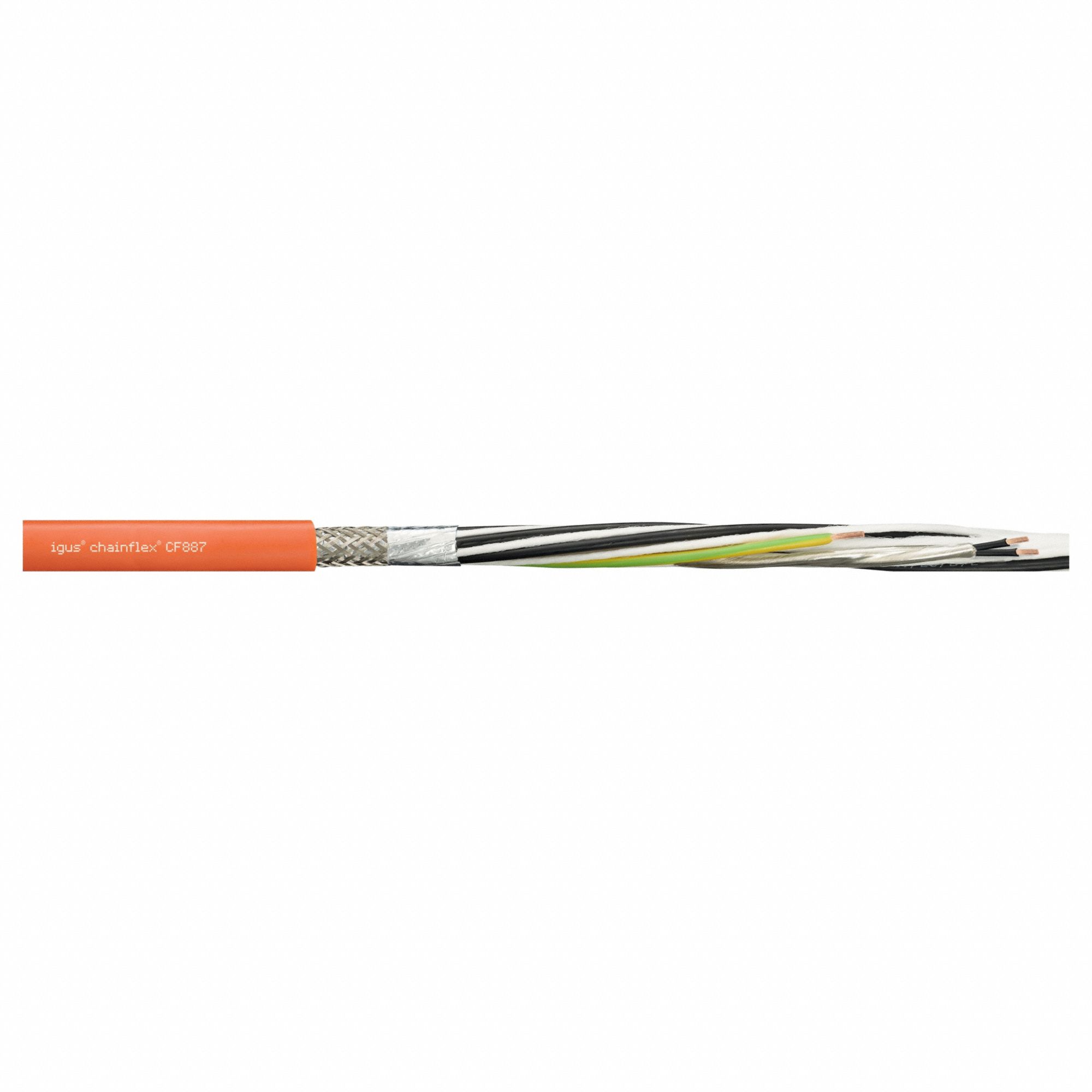

Name: Chainflex 3G-OTH-49987 CHAINFLEX Servo Motor Cable: (4) 14 AWG (2.5)/ Shielded Twisted Pr 16 AWG (1.5), Orange, PVC Jacket (MPN CF887-25150201). Key specifications — Conductor Grouping: (4) 14 AWG/ Shielded Twisted Pair 16 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801M65, MPN CF887-25150201) features a conductor grouping of (4) 14 AWG with a shielded twisted pair of 16 AWG and includes a ground conductor. It is available by the foot and has a minimum bend radius factor of 8 x OD for fixed installation and 12 x OD for flexible applications. The cable is constructed with a PVC jacket in orange.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Pr 16 AWG (1.5), Orange, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 14 AWG/ Shielded Twisted Pair 16 AWG
Manufacturer Part Number	CF887-25150201
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
