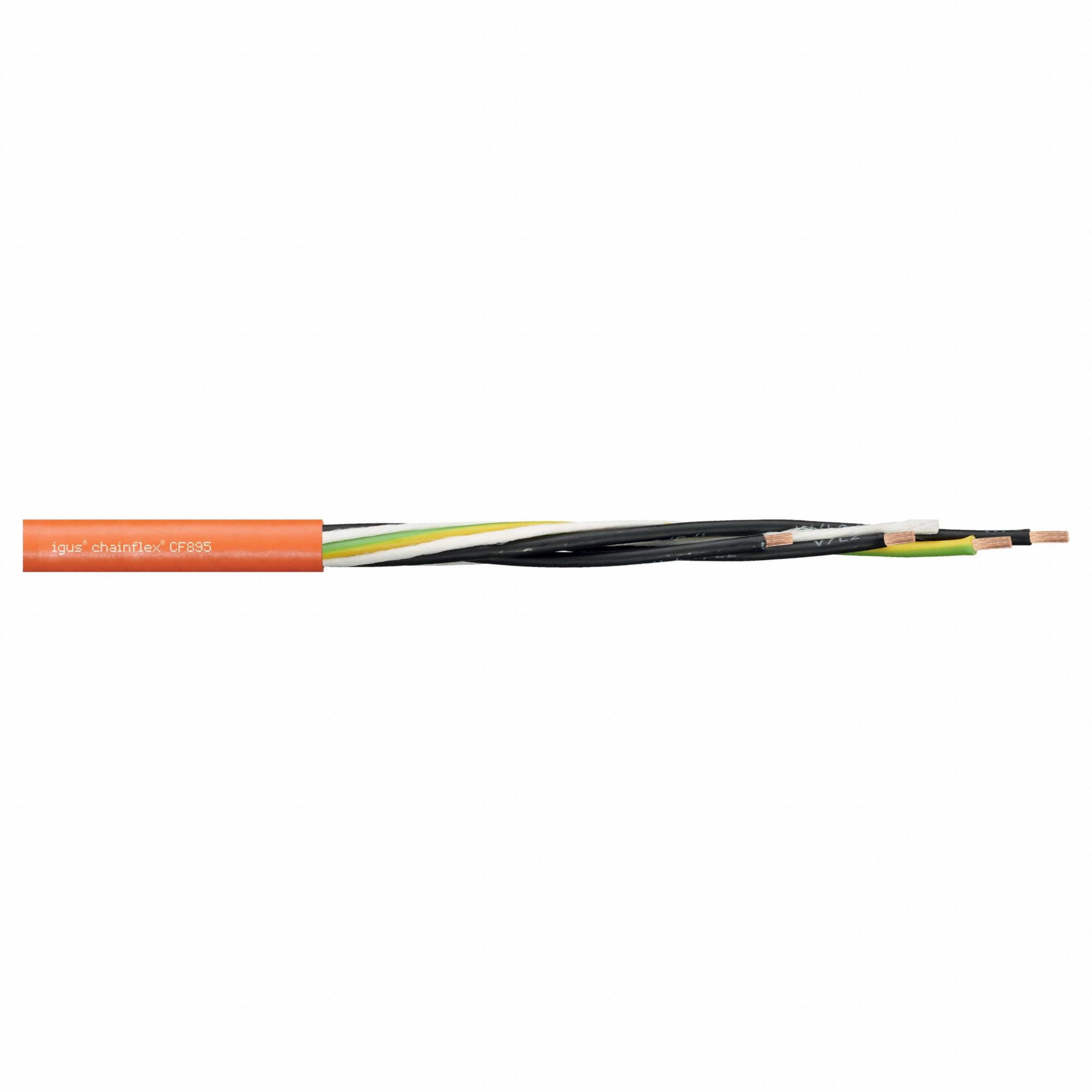

Chainflex 3G-OTH-46997 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46997 CHAINFLEX Motor Cable: 8 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF895-100-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CSA.
Brand: Chainflex

The CHAINFLEX Motor Cable: 8 AWG is a continuous flexing power cable from the Chainflex CF895 series, featuring 4 conductors of single copper with a PUR jacket and a 1,000 V rating. It includes a ground conductor, is UV/sunlight resistant, and meets CSA standards. Minimum bend radius factors are 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Conductors	4
Cable Series	CF895
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF895-100-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
