Chainflex 3G-OTH-47955 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47955 CHAINFLEX Motor Cable: 12 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CFPE-40-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1; Product Type: Motor Cable.
Brand: Chainflex

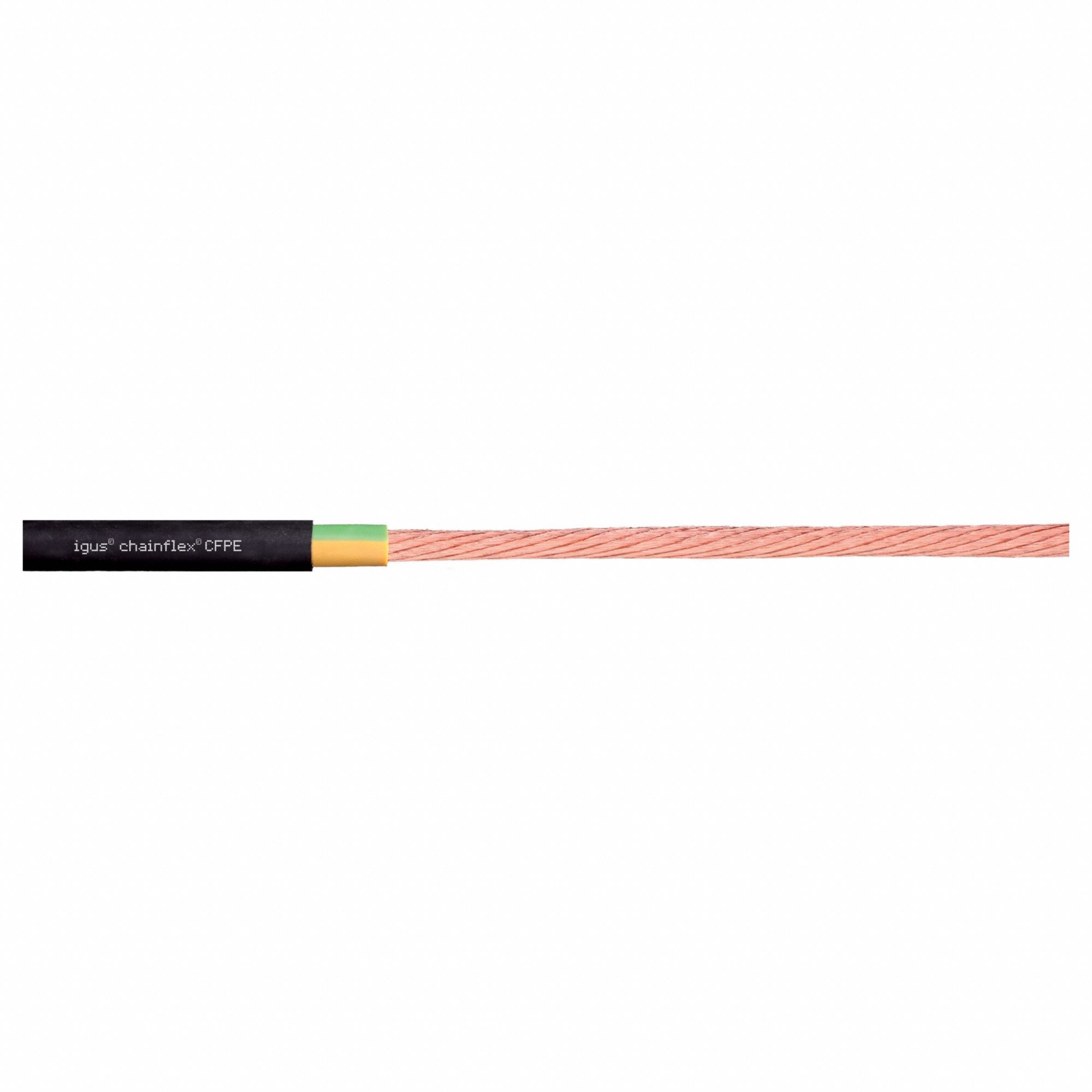

The CHAINFLEX Motor Cable: 12 AWG (SKU 801MG8, MPN CFPE-40-01) is a single-conductor continuous flexing power cable from the Chainflex CFPE series, featuring a TPR jacket and rated at 1,000 V. It includes a ground conductor, is flame retardant per VW-1 standards, and offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	1
Cable Series	CFPE
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CFPE-40-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
