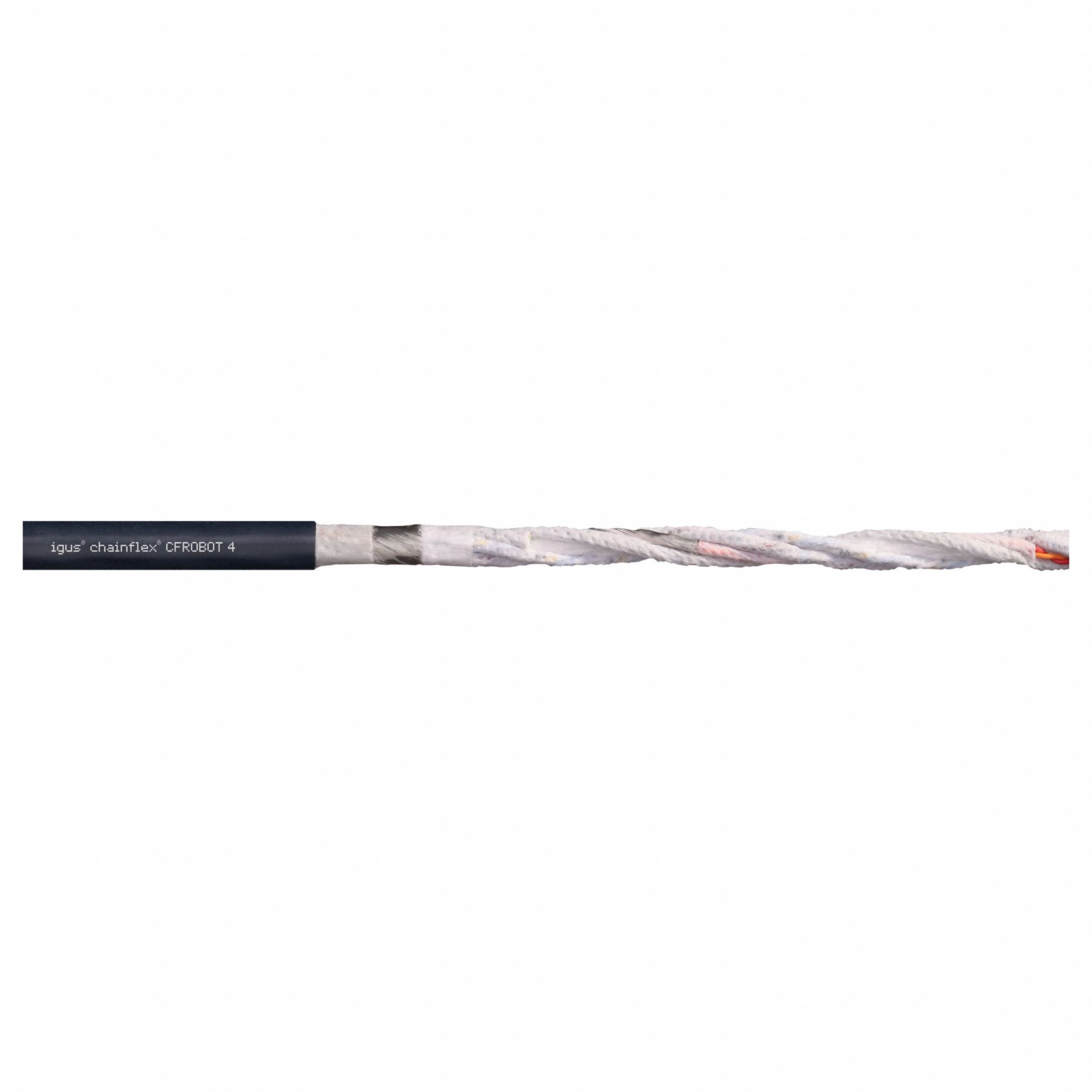

Chainflex 3G-OTH-48034 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48034 CHAINFLEX Measuring System Cable: (4) Pr 26 AWG (0.14)/(4) 20 AWG (0.50), PUR Jacket, 50 V Volt (MPN CFROBOT4-015). Key specifications — Conductor Grouping: (4) Pair 26 AWG/(4) 20 AWG; Includes Ground: No; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 5 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (SKU 801MJ7, MPN CFROBOT4-015) is a measuring system cable with a PUR jacket and a 50 V rating. It features a conductor grouping of (4) Pair 26 AWG (0.14)/(4) 20 AWG (0.50) and does not include a ground. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation, and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	PUR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(4) Pair 26 AWG/(4) 20 AWG
Manufacturer Part Number	CFROBOT4-015
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
