Chainflex 3G-OTH-45863 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45863 CHAINFLEX Hybrid Cable: (5) Four Pr 24 AWG (0.25)/(10) Three Pr 18 AWG (0.75), PUR Jacket (MPN CFSP-792-016). Key specifications — Conductor Grouping: (5) Four Pair 24 AWG/(10) Three Pair 18 AWG; Includes Ground: Yes; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 5 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

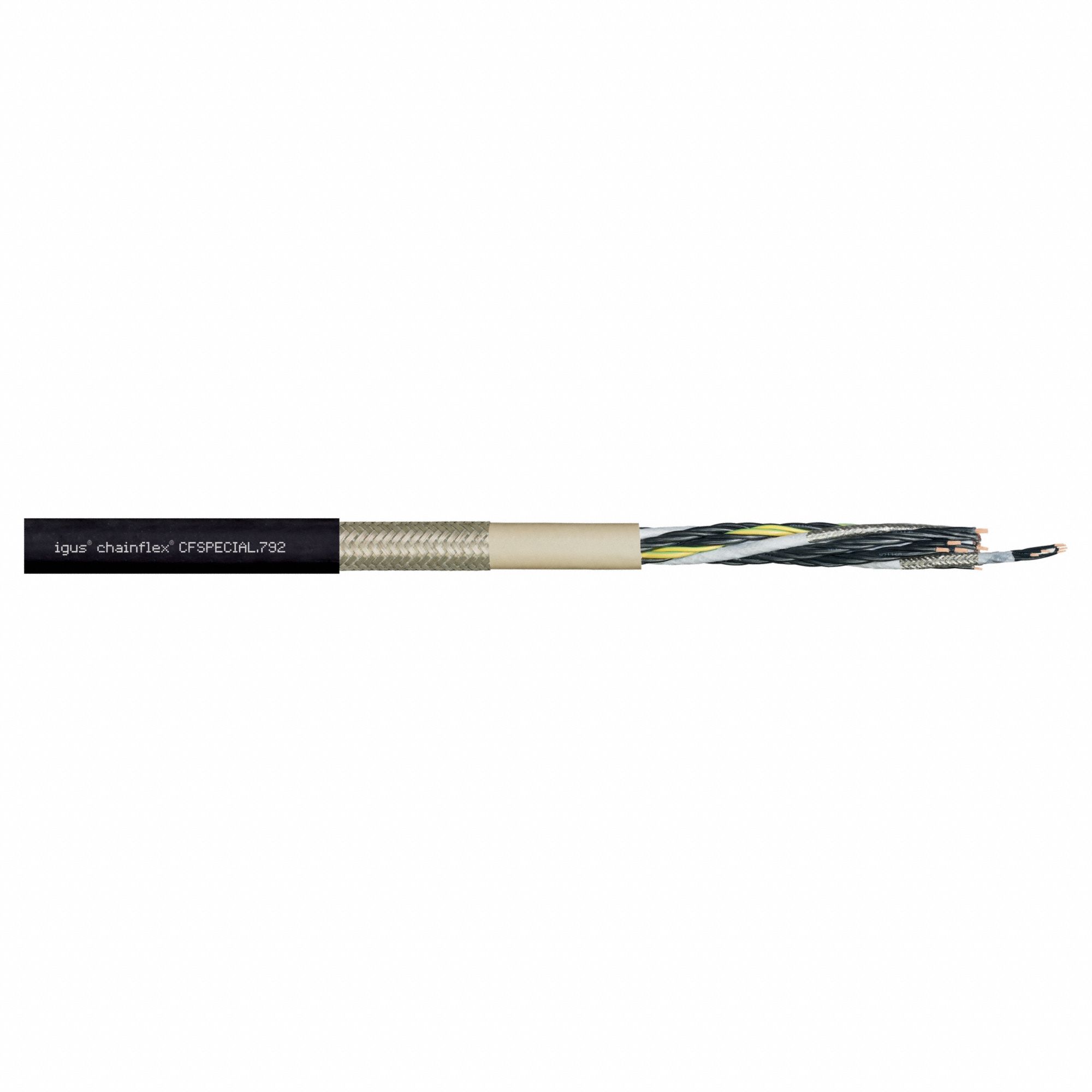

The CHAINFLEX Hybrid Cable (SKU 801MN1, MPN CFSP-792-016) is a hybrid cable featuring a conductor grouping of (5) Four Pair 24 AWG and (10) Three Pair 18 AWG, with a PUR jacket and includes ground. It has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation, and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	18 AWG (0.75), PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(5) Four Pair 24 AWG/(10) Three Pair 18 AWG
Manufacturer Part Number	CFSP-792-016
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
