Crydom 3G-OTH-38590 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38590 CRYDOM Solid State Relay: Surface Mounted, 10 A Max Output Current, SCR, AC Output (MPN EL240A10-24). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Quick-Connect; Finger Safe: No; Input Current: 19 mA; Maximum Output Current without Heat Sink: 9 A; Mounting Style: Panel; Output Voltage: 24 to 280V AC.
Brand: Crydom

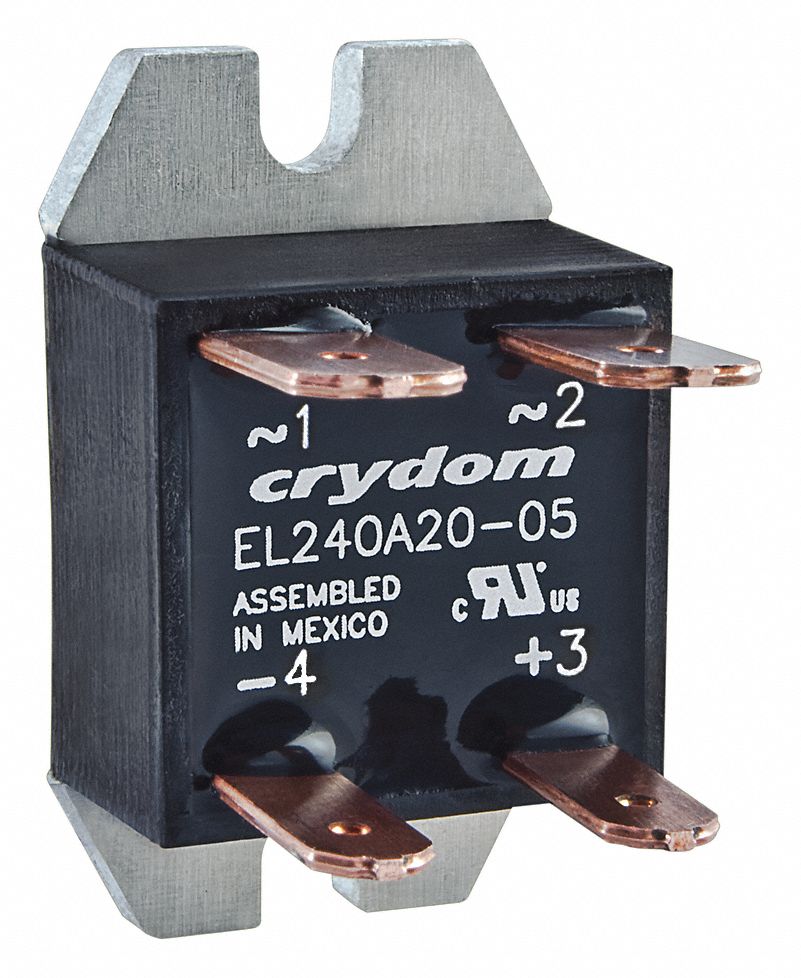

The CRYDOM Solid State Relay is a panel-mounted, surface-mounted relay with a DC input current of 19 mA and an AC output voltage range of 24 to 280V AC. It features a Form A switch configuration, a maximum output current without heat sink of 9 A, and quick-connect electrical connections. This relay is not finger-safe and is designed for AC output applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	DC
Input Current	19 mA
Mounting Style	Panel
Output Voltage	24 to 280V AC
Max Output Current	10 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Quick-Connect
Manufacturer Part Number	EL240A10-24
Maximum Output Current Without Heat Sink	9 A
